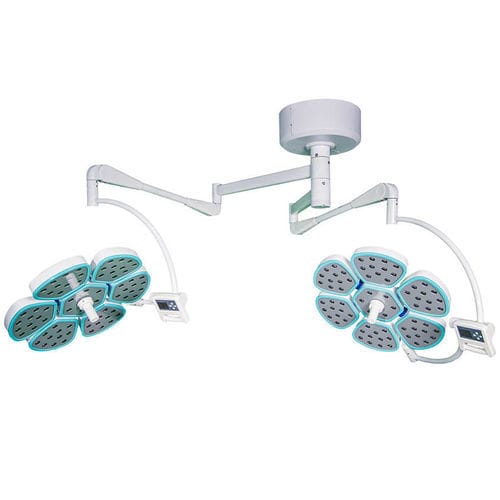

LED surgical light SX-II 6/6

for operating rooms2-arm220V / 50Hz

Product description

Unique features:

• Fully enclosed, streamlined design compatible with laminar flow purification and OR sanitation.
• Professional six-joint suspension system for stable, drift-free positioning; 360° rotating arm for flexible access to surgical sites.
• LED cold light source with service life up to 80,000 h, reducing lamp replacement and operating costs.
• Advanced cold-light design without infrared or ultraviolet radiation; temperature rise at surgeon's head <1°C.
• Humanized surface design with endoscope control mode to meet diverse surgical lighting requirements.
• Adjustable color temperature from 3700K to 5000K to support diagnostic accuracy and reduce visual fatigue.
• Each LED fitted with refracting lens and optimized optical layout to ensure uniform, advanced optical performance.
• Lamp head concentrates beam into a uniform light column delivering soft, uniform deep-gathering suitable for high-brightness, high-depth surgery.
• LCD control for power, illumination and color temperature; digital memory stores preferred illumination settings.

Technical parameters
Model: LED6/6
LED lamp beads qty: 72/72 (total 144)
Illuminance (Lux): 40,000–180,000
Color Temperature (K): 3700–5000 (adjustable)
Spot Diameter (mm): 150–350/150–350
Color Rendering Index (CRI): ≥96
Depth of irradiation (mm): ≥1200
Brightness adjustment (digital display): 1%–100%
Power supply/voltage: ~220V/50Hz
Input power (W): 220
Temperature rise at surgeon's head: <1°C
LED average life: ≥80,000 h
Recommended installation height: 2.8–3.1 m

Configuration

• 1. Lamp holder: 2 sets
• 2. Disinfection handle: 4 pcs
• 3. Lamp beads: 144 pcs
• 4. Balancer: 2 sets
• 5. Rotating arm: 1 set (double arms)
• 6. Switch power supply assembly: 2 sets
• 7. Fixed base: 1 set
• 8. Shield: 1 set
• 9. Light tools: 1 set
• 10. Operating manual / warranty card: 1 set
• 11. Guarantee: 1 set

Specifications

• Model designation: SX-II 6/6
• Brand: Suxin
• HS code: 9405429000
• LED configuration: 6 + 6 (petal-type), 72/72 LEDs per head (144 total)
• Illuminance range: 40,000–180,000 Lux
• Adjustable color temperature: 3,700–5,000 K
• High CRI: ≥96
• Depth of irradiation: ≥1,200 mm
• Brightness adjustment: digital display, 1%–100%
• Input power: 220 W; supply ~220V/50Hz
• LED average life: ≥80,000 hours
• Surgeon head temperature rise: <1°C
• Recommended installation height: 2.8–3.1 m
