Ceiling-mounted surgical light SX-500/500

LEDfor operating rooms2-arm

Product overview

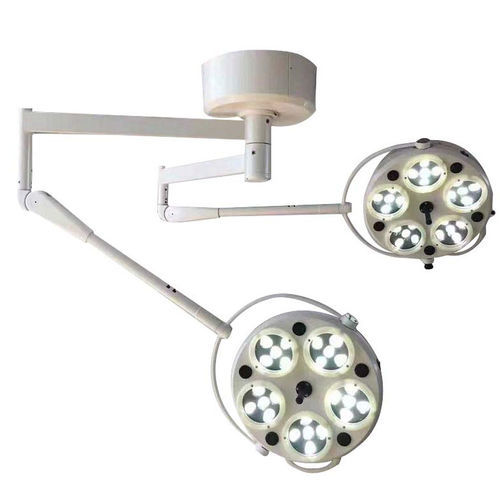

• Ceiling-mounted LED surgical operating light, model LED 500/500 (also referenced as SX-500/500), double-arm configuration for flexible positioning in operating rooms.

Key features

• Fully enclosed, streamlined housing compatible with laminar flow and operating room sanitation requirements.
• Stable natural positioning with no drift to maintain consistent illumination at varied surgical sites; rotating arm provides 360° maneuverability.
• LED cold light source with long service life (≥50,000 h) to reduce maintenance and lamp replacement.
• Cold lighting technology without infrared or ultraviolet emission to prevent temperature rise at the surgeon's head (<1℃).
• Touch-control interface for ergonomic adjustment to hospital surgical lighting protocols.
• Adjustable color temperature to improve tissue visualization and reduce visual fatigue (standard 3700–5000 K, adjustable up to 5500 K).

Technical parameters
Model | LED 500/500
LED lamp beads qty | 25/25
Illuminance (Lux) | 40,000–100,000
Color temperature (K) | 3700–5000 (standard); adjustable up to 5500 K
Spot diameter (mm) | 150–300/150–300
Color Rendering Index (CRI) | ≥90
Irradiation depth (mm) | ≥1000
Brightness adjustment (digital) | 1%–10%
Power supply / Voltage | ~220V/50Hz (110V optional)
Input power (W) | 35 W
Temperature at surgeon's head | <1℃
LED average life | ≥50,000 h
Recommended installation height | 2.8–3.2 m


Configuration

• No.1 — Lampholder — QTY: 2 — Unit: sets
• No.2 — Disinfection handle — QTY: 4 — Unit: pcs
• No.3 — Lamp beads — QTY: 50 — Unit: pcs
• No.4 — Balancer — QTY: 2 — Unit: sets
• No.5 — Rotating arm — QTY: 1 — Unit: set — Remark: Double arms
• No.6 — Switch power supply assembly — QTY: 2 — Unit: sets
• No.7 — Fixed base — QTY: 1 — Unit: set
• No.8 — Shield — QTY: 1 — Unit: set
• No.9 — Light tools — QTY: 1 — Unit: set
• No.10 — Operating manual — QTY: 1 — Unit: set

Technical specifications

• Model: LED 500/500 (also indicated as SX-500/500)
• LED lamp beads qty: 25/25 (total 50)
• Illuminance: 40,000–100,000 Lux
• Color temperature: 3700–5000 K (standard), adjustable up to 5500 K
• Spot diameter: 150–300 mm
• CRI: ≥90
• Irradiation depth: ≥1000 mm
• Brightness adjustment: 1%–10% (digital display)
• Power supply/voltage: ~220V/50Hz (110V optional)
• Input power: 35 W
• Temperature at surgeon's head: <1℃
• LED average life: ≥50,000 h
• Recommended installation height: 2.8–3.2 m
