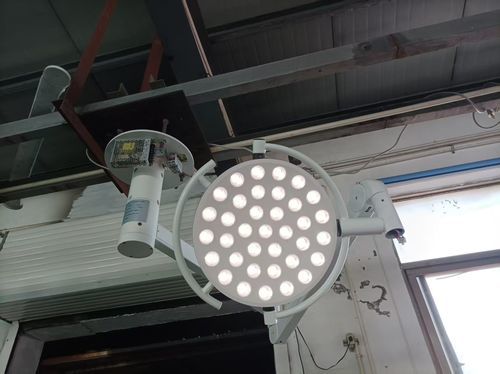

Ceiling-mounted surgical light SX-300

LEDfor operating rooms220V / 50Hz

Product brief
Ceiling-mounted single-dome LED operating/exam light designed for surgical and examination procedures. Model: SX-300 (LED 300). Minimum order quantity: 1 PC.

Unique features

• Fully enclosed, streamlined head design compatible with laminar-flow OR environments to support hygiene and purification requirements.
• Stable, precise positioning without drift; 360° rotating arm for flexible aiming and easy repositioning.
• Long-life LED cold light source with average life ≥50,000 h to minimize maintenance and replacement costs.
• Cold-light technology with minimal infrared and ultraviolet emission to avoid temperature rise at the surgeon's head.
• Intuitive touch control and human-centered surface design to adapt lighting to different surgical needs.
• Adjustable color temperature from 3700 K to 5500 K to improve tissue differentiation and reduce visual fatigue.

Technical parameters

• Model: LED 300 / SX-300
• LED beads quantity: 36
• Illuminance: ≥80,000 Lux
• Color temperature: 3700–5000 K (adjustable)
• Spot diameter: 0–125 mm
• Color Rendering Index (CRI): ≥80
• Irradiation depth: up to 200 mm
• Power supply / voltage: ~220V/50Hz (110V optional)
• Light power (per LED): 3 W
• Temperature rise at surgeon's head: <1°C
• LED average life: ≥50,000 h
• Recommended installation height: 2.8–3.2 m

Configuration

• 1 - Lampholder - QTY: 1 - Unit: set
• 2 - Knob button - QTY: 1 - Unit: pcs
• 3 - Lamp beads - QTY: 36 - Unit: pcs
• 4 - Balancer - QTY: 1 - Unit: sets
• 5 - Rotating arm - QTY: 1 - Unit: set
• 6 - Switch power supply assembly - QTY: 1 - Unit: set
• 7 - Fixed base - QTY: 1 - Unit: set
• 8 - Shield - QTY: 1 - Unit: set
• 9 - Light tools - QTY: 1 - Unit: set
• 10 - Operating manual - QTY: 1 - Unit: set

Technical specifications

• Model: SX-300
• Brand: Suxin Medical
• HS Code: 9405429000
• LED lamp beads qty: 36
• Illuminance: ≥80,000 Lux
• Color temperature: 3700–5000 K (adjustable)
• Spot diameter: 0–125 mm
• Color Rendering Index (CRI): ≥80
• Irradiation depth: up to 200 mm
• Power supply: ~220V/50Hz (110V optional)
• Light power: 3 W
• Temperature rise at surgeon's head: <1°C
• LED average life: ≥50,000 h
• Recommended installation height: 2.8–3.2 m
• Package / included items: lampholder, knob button, lamp beads, balancer, rotating arm, switch power supply assembly, fixed base, shield, light tools, operating manual
