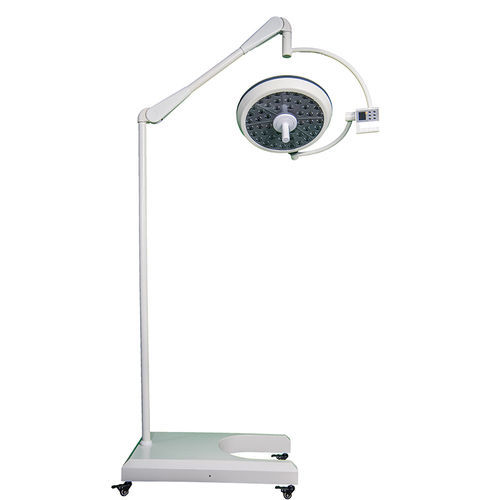

Ceiling-mounted surgical light SX-II 500L

mobilewall-mountedLED

Product description
Suxin SX-II 500L mobile LED shadowless surgical lamp is designed to deliver a high-intensity, uniform beam with effective shadow dilution and accurate color rendering for surgical procedures. Available in mobile (single or dual arm), ceiling and wall configurations, the unit features a fully enclosed head for infection control and a spring-balanced arm for easy, stable positioning. Intensity and beam focus are adjustable via a digital control panel, suitable for demanding operating-room environments.

Features

• Variable intensity and focusable beam
• Digital control with step dimming (micro-computer control)
• High color rendering index (Ra ≥97)
• No infrared or ultraviolet radiation
• Fully enclosed streamlined head design for laminar flow purification and sanitation
• Spring-balanced arm for precise and stable positioning
• Uniform brightness adjustment across a wide range with no stroboscopic effect

Technical specifications
Type and model: Mobile LED shadowless lamp / SX-II 500L
Illuminance (Lux): 40000-140000
Color temperature (K): 3700-5000 (adjustable)
Illumination depth (mm): ≥1200
Color rendering index (CRI): ≥97
Spot diameter (mm): 150-300
Operator's head temperature rise (℃): ≤1
Surgery field temperature rise (℃): ≤2
Power voltage: 220V 50Hz
Input power: 45 W

Specifications

• Model: SX-II 500L
• Brand: Suxin
• Code: 9405429000
• Illuminance: 40000-140000 Lux
• Color temperature: 3700-5000 K (adjustable)
• Illumination depth: ≥1200 mm
• CRI: ≥97
• Spot diameter: 150-300 mm
• Operator head temperature rise: ≤1 ℃
• Surgery field temperature rise: ≤2 ℃
• Power voltage: 220V 50Hz
• Input power: 45 W
• Certificates: CE / ISO13485 / ISO9001 / IEC 60601
