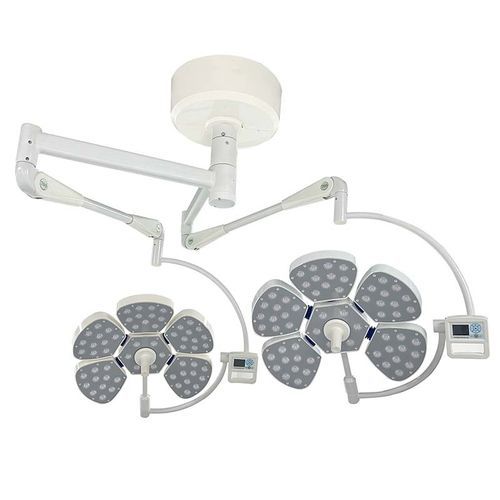

Ceiling-mounted surgical light SX-II 5/5

LEDfor operating rooms2-arm

Key features

• Fully enclosed, streamlined lamp head design compatible with laminar-flow purification and operating room sanitation standards.
• Professional six-joint suspension system enables stable, drift-free positioning; rotating arm provides 340° rotation for flexible targeting of different surgical sites.
• LED cold-light source with long service life (≥60,000 h, up to 80,000 h under optimal conditions), reducing lamp changes and operating costs.
• Cold lighting technology with no infrared or ultraviolet radiation and minimal temperature increase at the surgeon's head (<1℃).
• Humanized surface design with endoscope control mode to meet various surgical illumination requirements.
• Adjustable color temperature from 3700 K to 5000 K to improve tissue contrast and reduce visual fatigue.
• Each LED is fitted with a refracting lens and optimized optical layout to ensure uniform, high-quality illumination.
• Lamp holder design produces a uniform high-brightness light column with soft, deep convergence for improved depth lighting.
• Optional button-type control panel for simplified operation.

Technical parameters
Model: SX-II 5/5
LED quantity: 122 PCS
Illuminance (Lux): 40,000—160,000
Color Temperature (K): 3700—5000 (adjustable)
Spot diameter (mm): 150–300
Color Rendering Index (CRI): ≥96
Irradiation depth (mm): ≥1,200
Brightness adjustment (digital display): 1%–100%
Power supply / Voltage: ~220V/50Hz (110V optional)
Input power (W): 130 W
Temperature at surgeon's head: <1℃
LED average life: ≥60,000 h
Recommended mounting height: 2.8–3.2 m


Configuration

• 1. Lampholder — 1 set
• 2. Disinfection handle — 2 pcs
• 3. Lamp beads (LEDs) — 122 pcs
• 4. Balancer — 1 set
• 5. Rotating arm — 1 set
• 6. Switch power supply assembly — 1 set
• 7. Fixed base — 1 set
• 8. Shield — 1 set
• 9. Light tools — 1 set
• 10. Operating manual — 1 set
• 11. Guarantee — 1 set

Specifications

• Model: SX-II 5/5
• Brand: Suxin
• Product code: 9405429000
• LED quantity: 122 pieces
• Illuminance: 40,000–160,000 Lux
• Color temperature: 3,700–5,000 K (adjustable)
• Spot diameter: 150–300 mm
• Color rendering index (CRI): ≥96
• Irradiation depth: ≥1,200 mm
• Brightness dimming: 1%–100% (digital display)
• Input power: 130 W; Voltage: ~220V/50Hz (110V optional)
• LED average life: ≥60,000 h
• Recommended mounting height: 2.8–3.2 m
