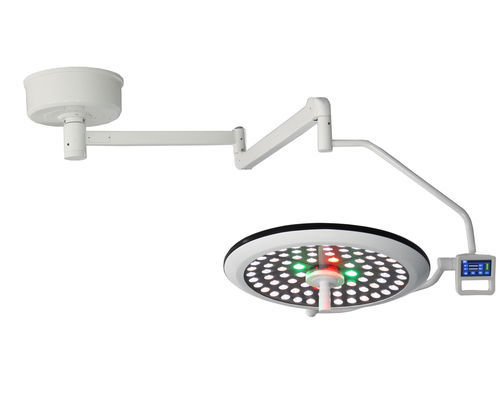

Ceiling-mounted surgical light SX-700

LEDfor operating rooms220V / 50Hz

Overview

• Ceiling-mounted LED operating light with a single dome delivering shadowless illumination for sterile surgical environments.

Unique features

• Fully enclosed, streamlined housing compatible with laminar-flow purification and operating room sanitation requirements.
• Stable, natural positioning without drift; rotating arm provides 360° rotation for flexible positioning of the light field.
• Long LED lifetime ≥50,000 hours, minimizing lamp replacement and maintenance.
• Cold-light LED technology with no infrared or ultraviolet radiation and minimal temperature rise at the surgeon's head.
• Human-centered surface design with touch control to adjust lighting during procedures.
• Adjustable color temperature from 3700–5000 K to support accurate tissue visualization and reduce visual fatigue.

Model / Brand / Code

• Model: SX-700
• Brand: Suxin Medical
• Code: 9405429000

Technical parameter
Model - LED 700
LED lamp beads qty - 80
Illuminance (Lux) - 40000—180000
Color Temperature (K) - 3700—5000 (adjustable)
Spot Diameter (mm) - 150-300
Color Rendering Index (CRI) - ≥96
The depth of the irradiation (MM) - ≥1200
Brightness Adjustment Digital Display - 1%~10%
Power supply and voltage - ~220V/50Hz, 110V optional
Input power (W) - 35W
Temperature at surgeon's head - <1℃
LED average life - ≥50000h
Best height installation - 2.8-3.2M


Configuration
No - Item Name - QTY - Unit
1 - Lampholder - 1 - set
2 - Disinfection handle - 2 - pcs
3 - Lamp beads - 80 - pcs
4 - Balancer - 1 - sets
5 - Rotating arm - 1 - set
6 - Switch power supply assembly - 1 - set
7 - Fixed base - 1 - set
8 - Shield - 1 - set
9 - Light tools - 1 - set
10 - Operating manual - 1 - set


Product Description
The lamp features a fully enclosed, streamlined housing suitable for sterile operating rooms. Cold LED lighting minimizes heat output while adjustable color temperature and brightness controls allow precise surgical illumination to meet a variety of procedures.


Technical specifications

• Model: SX-700
• Brand: Suxin Medical
• LED lamp beads quantity: 80
• Illuminance: 40,000–180,000 Lux
• Color temperature: 3,700–5,000 K (adjustable)
• Spot diameter: 150–300 mm
• CRI: ≥96
• Irradiation depth: ≥1,200 mm
• Brightness adjustment range: 1%–10% (digital display)
• Power supply: ~220V/50Hz (110V optional)
• Input power: 35 W
• Temperature rise at surgeon's head: <1℃
• LED lifetime: ≥50,000 h
• Recommended installation height: 2.8–3.2 m
