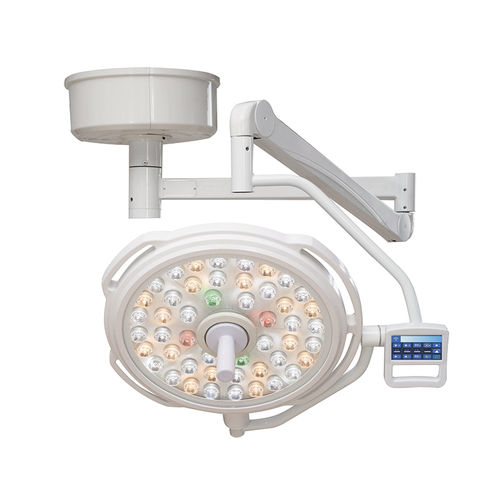

Ceiling-mounted surgical light SX-500

LEDfor operating rooms220V / 50Hz

Overview
Ceiling-mounted LED operating light engineered for surgical environments. 500 mm lamphead with single-arm support and 360° rotation for flexible positioning. Touch control panel for brightness and color temperature adjustment; designed to meet laminar flow and hygiene requirements in operating rooms.

Key features

• Fully enclosed, streamlined lamphead compatible with laminar-flow purification and OR sanitation protocols.
• Stable, natural positioning (no drift) with a 360° rotatable arm for accurate aiming of the light field.
• LED cold-light source with an average life ≥50,000 h, minimizing maintenance and bulb replacements.
• No infrared or ultraviolet emission and minimal thermal rise at the surgeon's head (<1°C), delivering effective cold-light performance.
• Touchable control panel to meet various intraoperative lighting needs.
• Adjustable color temperature from 3,700 K to 5,500 K and high color rendering index (CRI ≥96) to support diagnostic accuracy and reduce visual fatigue.

Technical parameters
Model: LED 500
Commercial model: SX-500
Brand: Suxin Medical
Product code: 9405429000
LED lamp beads qty: 48
Illuminance (Lux): 37,000–140,000
Color Temperature (K): 3,700–5,500 (adjustable; product notes operational range 3,700–5,000 K)
Spot Diameter (mm): 150–300
Color Rendering Index (CRI): ≥96
Irradiation depth (mm): ≥1,200
Brightness Adjustment (digital display): 1%–10%
Power supply/voltage: ~220 V/50 Hz (110 V optional)
Input power (W): 35 W
Temperature rise at surgeon's head: <1°C
LED average life: ≥50,000 h
Recommended installation height: 2.8–3.2 m

Configuration
1 — Lampholder — QTY: 1 — Unit: set
2 — Disinfection handle — QTY: 2 — Unit: pcs
3 — Lamp beads — QTY: 48 — Unit: pcs
4 — Balancer — QTY: 1 — Unit: set
5 — Rotating arm — QTY: 1 — Unit: set
6 — Switch power supply assembly — QTY: 1 — Unit: set
7 — Fixed base — QTY: 1 — Unit: set
8 — Shield — QTY: 1 — Unit: set
9 — Light tools — QTY: 1 — Unit: set
10 — Operating manual — QTY: 1 — Unit: set

Technical specifications

• Commercial model name: SX-500
• Brand: Suxin Medical
• Product code (listed on page): 9405429000
• Model (technical): LED 500
• LED bead quantity: 48
• Illuminance: 37,000–140,000 Lux
• Color temperature: adjustable 3,700–5,000 K (note: product page also mentions up to 5,500 K capability)
• Spot diameter: 150–300 mm
• Color rendering index (CRI): ≥96
• Irradiation depth: ≥1,200 mm
• Brightness adjustment range: 1%–10% (digital display)
• Input voltage: ~220 V/50 Hz (110 V optional)
• Input power: 35 W
• Temperature rise at surgeon's head: <1°C
• LED average lifetime: ≥50,000 hours
• Recommended installation height: 2.8–3.2 m
