LED surgical light SX-II 6

for operating rooms220V / 50Hz96

Product Description

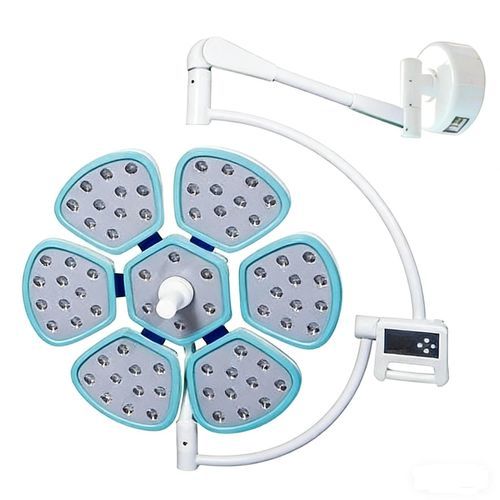

The SX-II 6 petal-type LED operating shadowless lamp is designed for modern operating rooms to provide uniform, high-intensity cold light for surgical procedures while meeting laminar flow and sanitation requirements.

Unique features

• Fully enclosed, streamlined design compatible with laminar flow purification and OR sanitation.
• Six-joint suspension system with natural positioning and no drift; rotating arm allows 360° rotation for flexible positioning.
• Long-life LED cold light source with up to 80,000 h average life, eliminating routine bulb replacement.
• Cold lighting technology with no infrared or UV radiation, minimal temperature rise at the surgeon's head.
• Humanized surface design with endoscope-control mode to accommodate varied surgical lighting needs.
• Adjustable color temperature 3700–5000 K to improve visual accuracy and reduce fatigue.
• Individual LED lenses and advanced optical layout ensure reliable beam shaping and optical performance.
• LED lamp holder concentrates the beam into a uniform column for soft, deep illumination meeting high-brightness surgical requirements.
• LCD button control for power, illumination and color temperature; digital memory stores preferred settings for quick recall.

Technical parameter
Model: LED6
LED lamp beads qty: 72
Illuminance (Lux): 40000—180000
Color Temperature (K): 3700—5000 (adjustable)
Spot Diameter (mm): 150-350
Color Rendering Index (CRI): ≥96
The depth of the irradiation (mm): ≥1200
Brightness Adjustment Digital Display: 1%~100%
Power supply and voltage: ~220V/50Hz
Input power (W): 220
Temperature at surgeon's head: <1℃
LED average life: ≥80000h
Best height installation: 2.8-3.0M

Configuration

• Lampholder — 1 set
• Disinfection handle — 2 pcs
• Lamp beads — 72 pcs
• Balancer — 1 set
• Rotating arm — 1 set
• Switch power supply assembly — 1 set
• Fixed base — 1 set
• Shield — 1 set
• Light tools — 1 set
• Operating manual / warranty card — 1 set
• Guarantee — 1 set

Product specifics / Model

• Model: SX-II 6

caractéristiques / spécifications techniques

• Model: LED6
• LED beads: 72
• Illuminance: 40,000 – 180,000 Lux
• Color temperature: 3,700 – 5,000 K (adjustable)
• Spot diameter: 150 – 350 mm
• CRI: ≥96
• Irradiation depth: ≥1200 mm
• Brightness adjustment: 1% – 100% (digital display)
• Power: ~220V/50Hz, input power 220 W
• LED life: ≥80,000 hours
• Recommended installation height: 2.8 – 3.0 m
