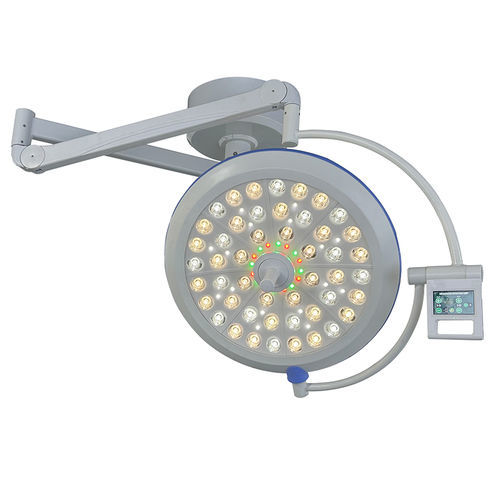

Ceiling-mounted surgical light SX-II 700

LEDfor operating rooms220V / 50Hz

Key features:

• Fully enclosed lamp head and streamlined design suitable for laminar flow purification and operating room sanitation.
• Six-joint suspension with 340° rotating arm for stable, drift-free positioning and flexible coverage of surgical sites.
• Long-life LED cold light source with up to 80,000 h service life to minimize maintenance and replacement.
• Cold lighting technology with no infrared or UV radiation; negligible temperature rise at surgeon's head (<1℃).
• Human-centered surface design with endoscope control mode to support various intraoperative lighting needs.
• Adjustable color temperature from 3700K to 5000K to enhance tissue visualization and reduce visual fatigue.
• Individual LED lenses and optimized optical layout for reliable, uniform illumination and deep light penetration.
• Concentrated lamp holder design producing a uniform light column with high brightness and soft, even field suitable for deep surgical illumination.
• Touchable control panel for quick, intuitive adjustments of brightness and color temperature.

Technical parameters:
Model: SX-II 700
LED lamp beads qty: 80 PCS
Illuminance (Lux): 40,000–180,000
Color Temperature (K): 3700–5000 (adjustable)
Spot Diameter (mm): 150–300
Color Rendering Index (CRI): ≥96
Depth of irradiation (mm): ≥1200
Brightness adjustment (digital display): 1%–100%
Power supply / Voltage: ~220V/50Hz (110V optional)
Input power (W): 150W
Temperature at surgeon's head: <1℃
LED average life: ≥80,000 h
Recommended installation height: 2.8–3.2 m

Configuration:

• 1. Lampholder — QTY: 1 — Unit: set
• 2. Disinfection handle — QTY: 2 — Unit: pcs
• 3. Lamp beads — QTY: 80 — Unit: pcs
• 4. Balancer — QTY: 1 — Unit: set
• 5. Rotating arm — QTY: 1 — Unit: set
• 6. Switch power supply assembly — QTY: 1 — Unit: set
• 7. Fixed base — QTY: 1 — Unit: set
• 8. Shield — QTY: 1 — Unit: set
• 9. Light tools — QTY: 1 — Unit: set
• 10. Operating manual — QTY: 1 — Unit: set
• 11. Guarantee — QTY: 1 — Unit: set

Technical specifications:

• Model: SX-II 700
• Brand: Suxin
• LED beads: 80 PCS
• Illuminance: 40,000–180,000 Lux
• Color temperature: 3700K–5000K (adjustable)
• Spot diameter: 150–300 mm
• CRI: ≥96
• Irradiation depth: ≥1200 mm
• Brightness adjustment: digital display, 1%–100%
• Power supply / voltage: ~220V/50Hz (110V optional)
• Input power: 150 W
• Temperature rise at surgeon's head: <1℃
• LED lifetime: ≥80,000 h
• Recommended installation height: 2.8–3.2 m
• Suspension: six-joint suspension system with 340° rotating arm
• Control: touchable control panel; endoscope control mode available
