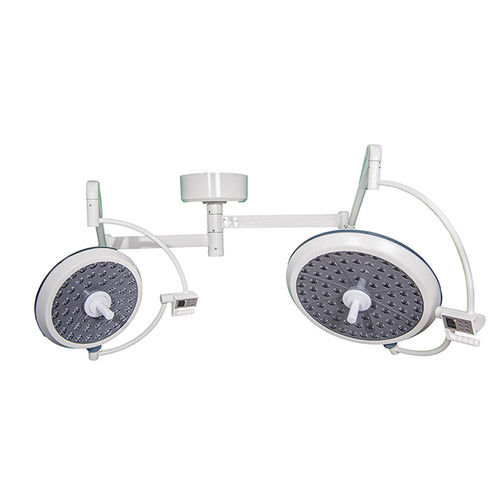

LED surgical light SX-II 700/500

for operating rooms2-arm220V / 50Hz

Product Name
SX-II 700&500 LED Operating Shadowless Lamp

Technical parameter
General Technical Specifications
Lamp holder Dia. (MM): 700 / 500
Illuminance: 40000-160000 lx (700) / 30000-140000 lx (500)
Color Temperature (K): 3700-5000K (Adjustable)
Spot Diameter (MM): 150-350
The depth of the irradiation (MM): ≥1200
Brightness Adjustment Digital Display: 1-100
Color Rendering Index (CRI): ≥96%
Color Reduction Index (RA): ≥97%
Temperature at surgeon's head: ≤1℃
Temperature in operation field: ≤2℃
Working radius: 600-1800 MM
Power supply and voltage: 220V±22V 50HZ±1HZ
Bulb average life: ≥60000h
Best height installation: 2800MM-3000MM

Unique features

• Scope of application: suitable for various surgical lighting in hospitals; ideal lighting device for modern operating rooms.
• Digital control LED brightness with reliable circuit design; uniform brightness adjustment, wide range, no stroboscopic effect.
• Long service life up to 60,000 h; each bulb can be exchanged individually for economy.
• LED emits no infrared or ultraviolet radiation; reduces radiation pollution and may aid wound healing.
• Low temperature in the operation field; average irradiation energy is 3.8mw/m2.
• Rotating arm can rotate 360°; flexible, portable and non-drifting.
• Spring assembly balancer structure for flexible, easy control and precise positioning; large adjustable range.
• Fully enclosed structure and streamlined design to meet laminar flow purification and sanitation requirements in operating rooms.
• Ultra-thin design (maximum thickness 10 cm) to obtain excellent laminar flow effect.
• Dia.700 lampholder = 80 lamp beads; Dia.500 lampholder = 48 lamp beads.
• Lamp cover material: imported aluminum; detachable handle sterilizable at 134℃ to ensure reliable operation.

Configuration

• 1) 700 lampholder — QTY: 1 — Unit: set
• 2) 500 lampholder — QTY: 1 — Unit: set
• 3) Disinfection handle — QTY: 4 — Unit: pcs
• 4) Lamp beads — QTY: 128 — Unit: pcs
• 5) Balancer — QTY: 2 — Unit: sets
• 6) Rotating arm (double arms) — QTY: 1 — Unit: set
• 7) Switch power supply assembly — QTY: 2 — Unit: sets
• 8) Fixed base — QTY: 1 — Unit: set
• 9) Shield — QTY: 1 — Unit: set
• 10) Light tools — QTY: 1 — Unit: set
• 11) Operating manual / warranty card — QTY: 1 — Unit: set
• 12) Guarantee — QTY: 1 — Unit: set

Technical specifications

• Model: SX-II 700/500
• Brand: Suxin
• Code: 9405429000
• Lamp holder diameter options: 700 mm and 500 mm
• Illuminance ranges: 40,000–160,000 lx (700) and 30,000–140,000 lx (500)
• Adjustable color temperature: 3700–5000 K
• Spot diameter: 150–350 mm
• Irradiation depth: ≥1200 mm
• Brightness adjustment: digital display, 1–100
• CRI: ≥96%; Color reduction index (RA): ≥97%
• Temperature rise at surgeon's head: ≤1℃; in operation field: ≤2℃
• Working radius: 600–1800 mm
• Power supply: 220V±22V, 50Hz±1Hz
• LED average life: ≥60,000 hours
• Recommended installation height: 2800–3000 mm
