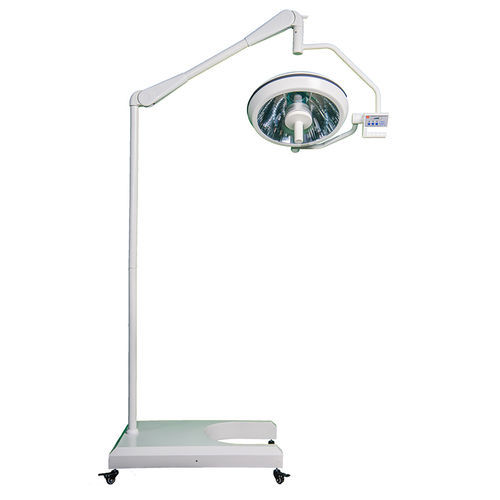

Mobile surgical light SX-I 500L

halogenfor operating rooms220V / 50Hz

Product description
This shadowless surgical halogen lamp is engineered for complex procedures (e.g. neurosurgery, thoracic surgery). It features a fully enclosed streamlined head with a high-definition rippled panel made of shock- and heat-resistant PC. The CAD/CAM-designed reflector system provides deep, uniform illumination and a color-temperature compensation system enhances color rendering while minimizing shadows.

Key features

• Fully enclosed streamlined head; high-definition rippled PC panel resistant to shock and heat.
• CAD/CAM reflector system with irradiation depth ≥1200 mm; color temperature compensation for improved color rendering in complex procedures.
• Microcomputer digital control with nine-step dimming; main and auxiliary bulbs easily replaceable.
• Automatic switch to standby bulb within 0.2 s on main-bulb failure; brightness memory; wide-voltage operation; strong anti-interference and soft-start functions.
• Detachable disinfection handle, sterilizable at ≤134°C.
• Six-joint arm design for smooth movement, stable positioning and 360° adjustment to accommodate various heights and angles.

Technical specifications

• Model: SX-I 500L
• Illuminance: 35,000-160,000 lux
• Color temperature: 4300 K ± 500 K
• Spot diameter: 150-300 mm (adjustable)
• Irradiation depth: ≥1200 mm
• Brightness adjustment steps: 20
• Surgeon head temperature rise: ≤1°C
• Power supply: 220 V, 50 Hz
• Bulb power: 150 W + 150 W (dual)
• Color Rendering Index (CRI): ≥97
• Rated power of bulb: 3.7 mW/m2lux
• Detachable handle sterilizable at ≤134°C
• Halogen bulb service life: up to 1000 hours

Configuration

• 500 lampholder — 1 set
• Disinfection handle — 2 pcs
• Halogen bulb — 4 pcs
• Spring arm — 1 set
• Switch power supply assembly — 1 set
• Fixed base — 1 set
• Shield — 1 set
• Light tools — 1 set
• Operating manual / warranty card — 1 set
