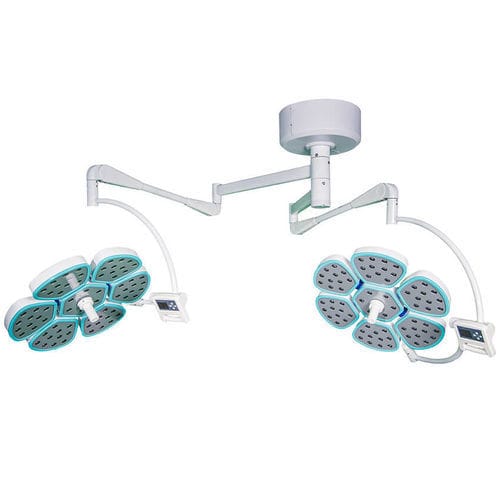

Ceiling-mounted surgical light 9405429000

LEDfor operating rooms2-arm

Product Description

• The operating lamp features a fully enclosed, streamlined design that complies with laminar flow purification and operating room sanitation requirements.
• A professional six-joint suspension system ensures stable positioning without drift; the rotating arm offers 340° rotation for flexible positioning.
• Long-life LED light source (≥80,000 h) reduces bulb replacements and improves operating economy and environmental impact.
• Cold lighting technology (no infrared or ultraviolet radiation) prevents temperature rise at the surgeon's head while delivering excellent illumination.
• User-friendly surface design with endoscope control mode to accommodate diverse surgical lighting needs.
• Adjustable color temperature from 3700K to 5000K improves tissue differentiation and reduces visual fatigue.
• Each LED uses a lens refraction system and optimized optical layout to ensure advanced and reliable light distribution.
• The LED lamp holder concentrates light into a uniform, high-brightness column for soft, even deep illumination meeting surgical high-brightness and depth requirements.
• LCD button control for power, illumination and color temperature; digital memory stores preferred illumination settings.

Technical Parameters
Model: SX-II 6/6 (LED6/6)
LED lamp beads qty: 72/72 (total 144)
Illuminance (Lux): 40,000–180,000
Color Temperature (K): 3700–5000 (adjustable)
Spot Diameter (mm): 150–300 / 150–300
Color Rendering Index (CRI): ≥96
Depth of irradiation (mm): ≥1200
Brightness adjustment (digital display): 1%–100%
Power supply / voltage: ~220V/50Hz (110V optional)
Input power (W): 35W
Temperature rise at surgeon's head: <1℃
LED average life: ≥80,000 h
Recommended installation height: 2.8–3.2 m

Configuration
No - Item Name - QTY - Unit - Remark
1 - Lampholder - 2 - sets -
2 - Disinfection handle - 4 - pcs -
3 - Lamp beads - 144 - pcs -
4 - Balancer - 2 - sets -
5 - Rotating arm - 1 - set - Double arms
6 - Switch power supply assembly - 2 - sets -
7 - Fixed base - 1 - set -
8 - Shield - 1 - set -
9 - Light tools - 1 - set -
10 - Operating manual - 1 - set -
11 - Guarantee - 1 - set -

Features / Specifications

• Model designation: SX-II (listed as SX-II 6/6)
• Brand: Suxin
• Code: 9405429000
• Illuminance: 40,000–180,000 lux
• Adjustable color temperature: 3,700–5,000 K
• CRI: ≥96
• Spot diameter: 150–300 mm
• Irradiation depth: ≥1,200 mm
• Brightness adjustment: 1%–100% (digital display)
• Input power: 35 W; Power supply: ~220V/50Hz (110V optional)
• LED average life: ≥80,000 hours
• Recommended installation height: 2.8–3.2 m
