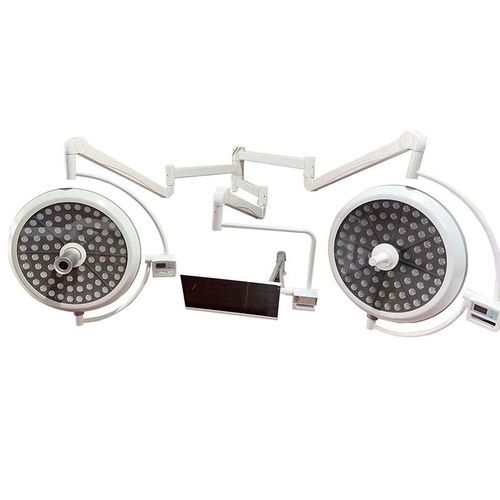

Ceiling-mounted surgical light SX-II 700/700

LEDveterinarydental

Product overview
The Suxin SX-II 700/700 is a ceiling-mounted surgical LED lamp with integrated camera designed for operating rooms that require laminar flow compatibility and high-depth, uniform illumination. It provides adjustable color temperature and digital brightness control for precise surgical lighting.

Key features:

• Fully enclosed, streamlined design suitable for laminar flow and sterile environments.
• Professional six-joint suspension system for secure, drift-free positioning; rotating arm with 340° rotation for flexible placement.
• Long-life LED cold light source with average life ≥60,000 h to minimize maintenance.
• Cold lighting design with negligible infrared and ultraviolet emission; minimal temperature rise at the surgeon’s head (<1℃).
• Endoscope control mode and humanized surface design for varied surgical workflows.
• Adjustable color temperature 3700–5000 K to improve tissue differentiation and reduce visual fatigue.
• Individual LED lenses and optimized optical layout for consistent, advanced optical performance.
• LED lamp holder and beam shaping design ensure a uniform light column with high brightness and deep illumination.
• Optional button-type control panel and digital display for brightness level (1%–100%).

Technical specifications:

• Model: SX-II 700/700
• Brand: Suxin
• Code: 9405429000
• LED quantity: 160 PCS
• Illuminance: 40,000–160,000 Lux
• Color temperature: 3700–5000 K (adjustable)
• Color rendering index (CRI): ≥96
• Spot diameter: 150–300 mm
• Illumination depth: ≥1200 mm
• Brightness adjustment: 1%–100% (digital display)
• Input power: 130 W
• Power supply: ~220V/50Hz (110V optional)
• LED average life: ≥60,000 h
• Temperature rise at surgeon's head: <1℃
• Recommended installation height: 2.8–3.2 m

Configuration:

• 1. Lampholder — QTY: 1 — Unit: set
• 2. Disinfection handle — QTY: 2 — Unit: pcs
• 3. Lamp beads — QTY: 160 — Unit: pcs
• 4. Balancer — QTY: 1 — Unit: set
• 5. Rotating arm — QTY: 1 — Unit: set
• 6. Switch power supply assembly — QTY: 1 — Unit: set
• 7. Fixed base — QTY: 1 — Unit: set
• 8. Shield — QTY: 1 — Unit: set
• 9. Light tools — QTY: 1 — Unit: set
• 10. Operating manual — QTY: 1 — Unit: set
• 11. Guarantee — QTY: 1 — Unit: set
