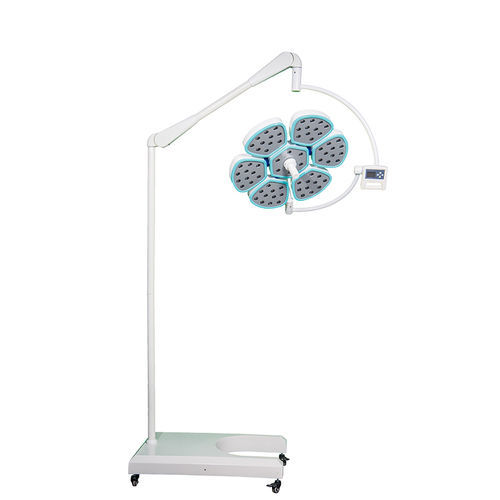

Mobile surgical light SX-6L

LEDfor operating rooms220V / 50Hz

Product Description
This floor-mobile LED shadowless surgical lamp features a fully enclosed, streamlined dome built from shock- and heat-resistant PC material and a CAD/CAM-designed reflector system. Color temperature compensation and a high CRI ensure faithful tissue color rendering for complex procedures (neurosurgery, thoracic surgery). The optical design produces uniform illumination and effective shadow elimination across the surgical field.

Technical parameters
Illuminance: 35,000–160,000 lux
Color temperature (K): 4300K ±500K
Spot diameter (mm): 150–300 mm adjustable
Irradiation depth (mm): ≥1200 mm
Brightness control: 8-step digital dimming with memory
Temperature rise at surgeon's head: ≤1°C
Power supply: 220V 50Hz
Bulb power: 45W per LED (total 72 LEDs)
Color Rendering Index (CRI): ≥97%
Service life: up to 3,000 hours

Configuration

• 650MM lamp dome — QTY: 1 — Unit: set
• Disinfection handle — QTY: 2 — Unit: pcs
• LED Osram bulb — QTY: 72 — Unit: pcs
• Spring Arm — QTY: 1 — Unit: set
• Fixed base — QTY: 1 — Unit: set
• Shield — QTY: 1 — Unit: set
• Light tools — QTY: 1 — Unit: set
• Operating manual/warranty card — QTY: 1 — Unit: set

Technical specifications

• Model: SX-6L
• Brand: Suxin
• Code: 9405429000
• Illuminance: 35,000–160,000 lux
• Color temperature: 4300K ±500K
• Spot diameter: 150–300 mm adjustable
• Illumination depth: ≥1200 mm
• Brightness adjustment: 8 steps (digital control) with memory
• Bulb power: 45W (LED Osram bulbs, total qty 72)
• CRI: ≥97%
• Power supply: 220V 50Hz
• Temperature rise at surgeon's head: ≤1°C
• Detachable disinfection handle sterilizable at ≤134°C
