Ceiling-mounted surgical light SX-I700/500halogenfor operating rooms2-arm
Add to favorites
Compare this product
Characteristics
- Configuration
- ceiling-mounted
- Light source
- halogen
- Applications
- for operating rooms
- Number of arms
- 2-arm
- Power source
- 220V / 50Hz
- Color rendering index
- 97
- Options
- with control panel
- Power
150 W
(0.2 hp)- Intensity at 1 m
Max.: 180,000 lx
Min.: 40,000 lx
- Color temperature
Max.: 4,800 K
Min.: 3,800 K
Description
Overview:
Key features:
Technical parameters:
Configuration / Accessories:
Installation and maintenance:
Applications:

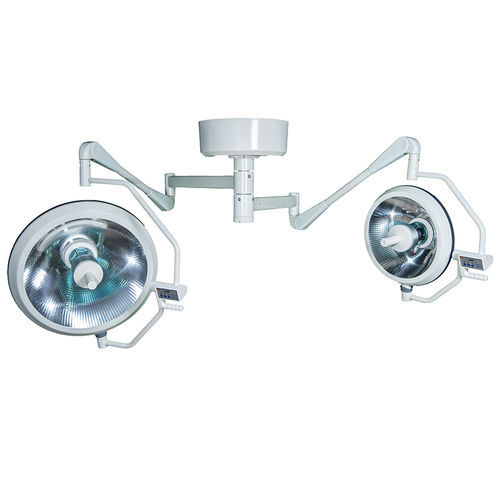

- The SX-I700/500 is a ceiling-mounted operating shadowless lamp with dual heads (700/500) designed for general and complex surgical procedures. It delivers deep, uniform illumination and high color fidelity for accurate tissue visualization.
Key features:
- Fully enclosed, streamlined housing with high-definition rippled PC panel resistant to shock and heat.
- CAD/CAM-designed reflector system providing irradiation depth ≥1200 mm and illuminance up to 180,000 lx with color temperature compensation for improved color rendition.
- Micro-computer digital control with 100-stage brightness adjustment and nine-step bulb-group dimming; automatic switch to auxiliary bulb within 0.2 s upon main bulb failure.
- Detachable disinfection handle compatible with high-level sterilization (≤134°C); major and auxiliary bulbs are user-replaceable; bulb life up to 1000 hours.
- Six-group joint and 360° movement with stable positioning to set required heights and angles during procedures.
Technical parameters:
- Model: SX-I700/500
- Illuminance (range): 40,000–180,000 lx (alternate reported: 35,000±160,000 lx)
- Color temperature: 4300 K ±500 K
- Color Rendering Index (CRI): ≥97%
- Spot diameter: 150–350 mm (adjustable)
- Irradiation depth: ≥1200 mm
- Brightness adjustment: 100 stages (digital control)
- Temperature at surgeon's head: ≤1°C
- Power supply: 220 V, 50 Hz
- Bulb power: 150/150
- Bulb rated power indicator: 3.7 mw/m2lux
- Lowest installation height: 2800 mm
Configuration / Accessories:
- 700 lampholder ×1 set
- 500 lampholder ×1 set
- Disinfection handle ×4 pcs
- Halogen bulb ×8 pcs
- Balancer ×2 sets
- Rotating arm (double arms) ×1 set
- Switch power supply assembly ×2 sets
- Fixed base ×1 set
- Shield ×1 set
- Light tools ×1 set
- Operating manual / warranty card ×1 set
- Guarantee ×1 set
Installation and maintenance:
- Ceiling installation with lowest height 2800 mm; balancer and rotating arm included for precise positioning.
- Standard and auxiliary bulbs are user-replaceable; automatic transfer on failure minimizes interruption to procedures.
- Disinfection handle is detachable and autoclavable at ≤134°C; perform periodic checks on electrical components, balancer and joints.
Applications:
- Neurosurgery, thoracic surgery and other procedures requiring deep, color-accurate illumination.
- General operating rooms where adjustable, shadow-free lighting is required.
