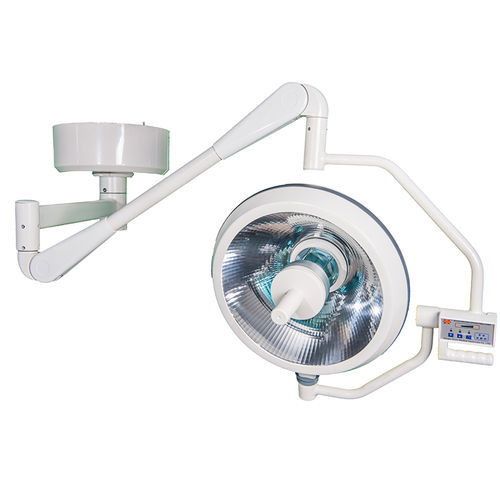

Ceiling-mounted surgical light SX-I 500

halogenveterinarydental

Unique features

• This device adopts a fully enclosed structure and streamlined design; high-definition rippled panel made of shock-resistant and heat-resistant PC material.
• Reflector system designed in CAD/CAM; depth of illuminance reaches up to 1200 mm. Color temperature compensation technology improves color rendering, suitable for complex surgeries (e.g. encephalon and thorax surgery) and effectively eliminates shadows.
• Micro-computer digital control circuit with nine-step dimming. Major and auxiliary bulbs are easily replaceable; when the main bulb malfunctions, the standby bulb operates automatically within 0.2 seconds.
• Features brightness memory, wide voltage operation, strong anti-interference ability and soft starter. Bulb service life up to 1000 hours.
• Detachable disinfection handle sterilizable at high level (≤134°C). Six-group joints move together smoothly, stable positions; 360° universal design to satisfy various height and angle requirements.

Technical parameter
Model: SX-I 500
Illuminance: 35000±120000
Color Temperature (K): 3500K±500K
Spot Diameter (MM): 150-300 mm (adjustable)
The depth of the irradiation (MM): ≥1200 mm
Brightness adjustment: 10 stages
Temperature at surgeon's head: ≤1℃
Power supply and voltage: 220V 50Hz
Bulb power: 150/150
Color Rendering Index (CRI): ≥97%
Rated power of bulb (mw/m2lux): 3.7
Lowest height installation: 2800 mm

Configuration

• 1 — 500 lampholder — QTY: 1 — Unit: set
• 2 — Disinfection handle — QTY: 2 — Unit: pcs
• 3 — Halogen bulb — QTY: 2 — Unit: pcs
• 4 — Balancer — QTY: 2 — Unit: sets
• 5 — Rotating arm — QTY: 1 — Unit: set
• 6 — Switch power supply assembly — QTY: 1 — Unit: set
• 7 — Fixed base — QTY: 1 — Unit: set
• 8 — Shield — QTY: 1 — Unit: set
• 9 — Light tools — QTY: 1 — Unit: set
• 10 — Operating manual / warranty card — QTY: 1 — Unit: set

Technical specifications

• Model: SX-I 500
• Illuminance range: 35000±120000
• Color temperature: 3500K±500K
• Spot diameter: 150–300 mm (adjustable)
• Illumination depth: ≥1200 mm
• Brightness steps: 10
• CRI: ≥97%
• Rated bulb power: 3.7 (mw/m2lux)
• Power supply: 220V, 50Hz
• Minimum installation height: 2800 mm
