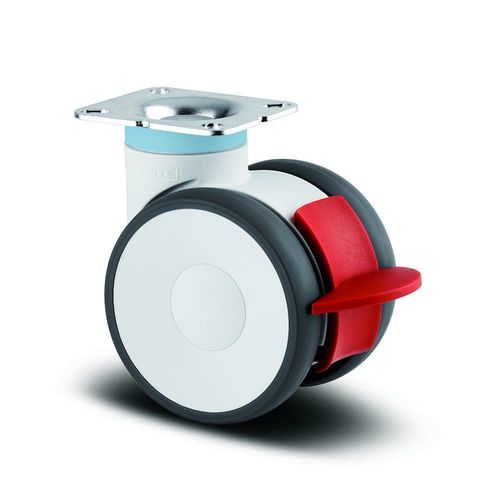

Medical trolley wheel Linea

for stretcherwith brakepolyamide

Product overview
The Linea swivel castor with total lock is designed for medical and professional equipment where secure positioning, low noise and floor protection are essential. The housing and wheel body are made of polyamide; the wheel features an injected polyurethane tread (92 Shore A) and a precision stainless ball bearing for corrosion resistance and long service life. The fitting is a rectangular mounting plate 77 x 67 mm for stable attachment.

Key features

• Total-lock function simultaneously blocks the wheel and swivel housing for secure parking of equipment.
• Injected polyurethane tread for low rolling resistance, non-marking behaviour and floor protection.
• Precision stainless ball bearing in swivel and wheel for improved corrosion resistance in clinical environments.
• Pre-fitted threadguard to prevent entanglement and reduce cleaning effort.
• Colour-coded lock pedals to facilitate user operation (directional lock / total lock).
• Complies with EN12530 and meets RoHS/REACH material requirements.

Selected configuration / variant shown on page

• Series: Linea
• Article number: 5947UAC100P50 RAL9002
• Wheel: Polyurethane, injected; wheel body polyamide; precision stainless ball bearing; with threadguard.
• Diameter: 100 mm
• Overall height: 124 mm
• Load capacity (dynamic at 3 km/h): 120 kg; Static load capacity: 240 kg
• Housing colour: Grey white (RAL9002)
• Fitting: Rectangular plate, 77 x 67 mm

Performance

• Roll performance: Optimised for medium-duty medical equipment — low rolling resistance for easier manoeuvring of trolleys and devices.
• Movement noise: Quiet operation due to injected polyurethane tread and polyamide wheel body — suitable for clinical areas.
• Wear resistance: 92 Shore A tread hardness provides reduced abrasion and extended service life.
• Corrosion resistance: Stainless precision bearings reduce maintenance and risk of contamination in hygiene-sensitive environments.

Fitting dimensions
Plate length: 77 mm
Plate width: 67 mm
Plate hole diameter: 8.5 mm
Plate hole length (maximum): 61.5 mm
Plate hole length (minimum): 56 mm
Plate hole width (maximum): 51.5 mm
Plate hole width (minimum): 46.5 mm

Application notes

• Recommended for medical carts, imaging devices, patient handling equipment and professional furniture requiring secure parking and low-noise movement.
• Designed for speeds up to 3 km/h under the specified dynamic load.
• Twin-wheel housing provides a differential effect for improved manoeuvrability on carts and equipment bases.

Technical specifications

• Product name: Linea
• Article number: 5947UAC100P50 RAL9002
• EAN: 4031582353037
• Type: Swivel castor with total lock
• Wheel diameter: 100 mm
• Overall height: 124 mm
• Overall width: 82 mm
• Offset: 32 mm
• Swivel radius: 108 mm
• Dome diameter: 52 mm
• Swivel interference: 216 mm
• Load capacity at 3 km/h (dynamic): 120 kg
• Load capacity (static): 240 kg
• Hardness of tread: 92 Shore A
• Tread material: Polyurethane, injected
• Tread width: 20 mm
• Wheel body material: Polyamide
• Fork / housing material: Polyamide
• Fork shape: Twin wheel housing
• Swivel bearing: Precision ball bearing (stainless)
• Threadguards: With threadguard
• Temperature range: -10 °C to 40 °C
• Standard: EN12530 - Devices Castors
• Electrical conductivity: Not electrically conductive
• Special features: Non-marking, low maintenance, chemical-resistant components, integrated cable protection, colour-coded lock pedals, total-lock function.
