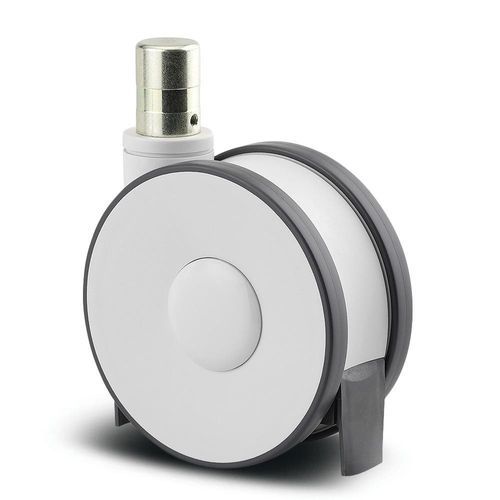

Medical trolley wheel Linea

for hospital bedpolyamidepolyurethane

Product overview
The Linea swivel castor is a twin-wheel swivel castor with a solid round stem fitting, polyamide housing and an integrated polyethylene cable catcher. It uses precision ball bearings in both the swivel and wheel and features a polyamide wheel body with an injected polyurethane tread. Wheel diameter is 150 mm and overall height is 155 mm. Dynamic load capacity is 150 kg (at 3 km/h and 4 km/h) and static load capacity is 300 kg.

Key features

• Non-hazardous materials
• Tested quality
• Colour matching

Special features

• Non-hazardous materials: Complies with RoHS and REACH; free from polycyclic aromatic compounds and chromium (VI).
• Tested quality: Laboratory-tested for compliance with applicable European standards, including EN12531 where relevant to medical beds and similar applications.
• Colour matching: Wheel and housing colours can be adapted to product design requirements.
• Painted surface options: Available in gold, chrome or glossy coloured finishes.
• Low-maintenance wheels: Threadguards reduce obstruction and simplify cleaning.
• Non-marking movement: Tread formulation reduces abrasion and limits floor marking.
• Ergonomic roll: Optimised rolling resistance to reduce operator effort when moving equipment.
• Chemical resistance: Components resistant to many cleaning agents and common chemicals used in healthcare and industrial environments.
• Optimised manoeuvrability: Twin-wheel design provides differential effect for improved turning in confined spaces.
• Reduced cleaning: Smooth surfaces to facilitate quick cleaning and maintenance.
• Integrated cable protection: Polyethylene cable catcher protects cables and prevents entanglement on floors.
• Individual branding options: Possibility for engraved, cast or printed identification.
• Threadguards: Fitted with threadguards for unobstructed wheel operation.

Technical specifications

• Product name: Linea
• Type: Swivel castor (twin wheel)
• Series / Denomination commercial: Linea
• Article number: 5940UAP150R05-32 CC R9002
• EAN: 4031582382679
• Wheel diameter: 150 mm
• Overall height: 155 mm
• Tread material: Polyurethane, injected
• Wheel body material: Polyamide
• Tread width: 15 mm
• Overall width: 71 mm
• Load capacity at 3 km/h: 150 kg
• Load capacity at 4 km/h: 150 kg
• Static load capacity: 300 kg
• Overall weight: 1.12 kg
• Temperature range: -10 °C to 40 °C
• Fitting type: Solid stem, round
• Bolt diameter: 32 mm
• Bolt length: 45 mm
• Fork shape: Twin wheel housing
• Housing note: Housing with integrated polyethylene cable catcher
• Fork material: Polyamide
• Swivel bearing: Precision ball bearing
• Wheel bearing: Precision ball bearing
• Swivel diameter: 254 mm
• Offset: 47.5 mm
• Swivel radius: 122.5 mm
• Threadguards: With threadguard
• Standard: similar EN12531 - Hospital Bed Castors
• Electrical conductive: not available
• Stainless: not available
