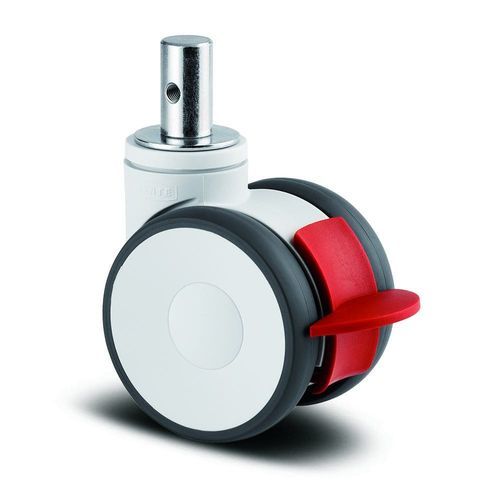

Medical trolley wheel Linea

with brakepolyamidepolyurethane

Product overview
The Linea swivel castor with total lock is designed for secure mounting and controlled positioning in medical and care environments. It features a solid round stem for reliable attachment, polyamide housing and wheel bodies, and an injected polyurethane tread for low-noise, floor‑friendly movement. Precision ball bearings in both the swivel and wheel hub ensure smooth directional changes. Wheel diameter: 125 mm; overall height: 145 mm. Dynamic load capacity 130 kg (at speeds up to 3 km/h) and static capacity 260 kg make this castor suitable for medical trolleys, imaging equipment carts and hospital furniture that require both mobility and secure locking.

Key features

• Wheel: Polyamide body with injected polyurethane tread
• Swivel bearing: Precision ball bearing
• Wheel bearing: Precision ball bearing
• Fitting: Solid stem, round, Ø22 mm
• Type: Swivel castor with total lock (locks wheel and swivel housing)
• Wheel diameter: 125 mm
• Overall height: 145 mm
• Overall width: 82 mm
• Tread width: 20 mm
• Load capacity at 3 km/h (dynamic): 130 kg
• Static load capacity: 260 kg
• Tread hardness: 92 Shore A
• Overall weight: 1.07 kg

Product advantages / special features

• Compliant materials: RoHS and REACH compliant, free from PAHs and chromium (VI)
• Tested quality: Manufacturer laboratory tests and conformity with European standards
• Colour matching: Housing colours can be adapted to product design
• Secure positioning: Total lock secures wheel and swivel to prevent unintended movement
• Low maintenance: Thread guards reduce cleaning and prevent entanglement
• Non-marking movement: Tread formulated for low abrasion and minimal marking
• Ergonomic use: Optimised rolling resistance to reduce operator effort
• Chemical resistance: Components resistant to many cleaning agents used in medical environments
• High manoeuvrability: Twin-wheel design with differential effect
• Integrated cable protection: Cable pusher protects cables lying on the floor
• Branding options: Engraved, cast or printed identification available

Technical specifications

• Product name: Linea
• Article number: 5947UAP125R05-22 RAL9002
• EAN: 4031582369168
• Wheel diameter: 125 mm
• Overall height: 145 mm
• Overall width: 82 mm
• Tread width: 20 mm
• Tread material: Polyurethane, injected
• Wheel body material: Polyamide
• Swivel bearing type: Precision ball bearing
• Wheel bearing: Precision ball bearing
• Load capacity (at 3 km/h): 130 kg (dynamic)
• Load capacity (static): 260 kg
• Overall weight: 1.07 kg
• Tread hardness: 92 Shore A
• Temperature range: -10 °C to 40 °C
• Fitting type: Solid stem, round
• Bolt/stem diameter: 22 mm
• Bolt length: 40 mm
• Fork material: Polyamide
• Fork shape: Twin-wheel housing
• Dome diameter: 52 mm
• Swivel interference: 258 mm
• Offset: 40 mm
• Swivel radius: 129 mm
• Standard: EN12530 - Devices Castors
