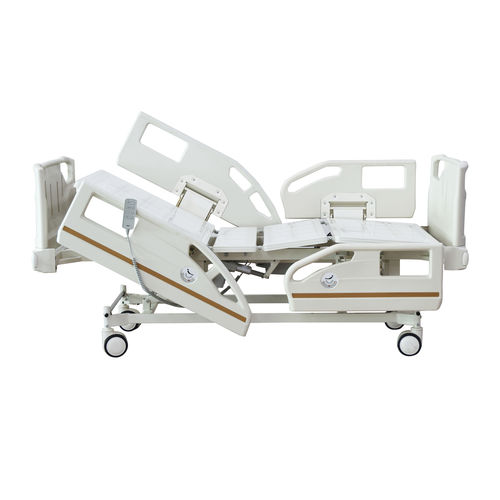

Hospital bed YK-M305
intensive careelectricheight-adjustable

Hospital bed - YK-M305 - Topmost Medical Technology Co.,Ltd - intensive care / electric / height-adjustable
Hospital bed - YK-M305 - Topmost Medical Technology Co.,Ltd - intensive care / electric / height-adjustable
Hospital bed - YK-M305 - Topmost Medical Technology Co.,Ltd - intensive care / electric / height-adjustable - image - 2
Hospital bed - YK-M305 - Topmost Medical Technology Co.,Ltd - intensive care / electric / height-adjustable - image - 3
Hospital bed - YK-M305 - Topmost Medical Technology Co.,Ltd - intensive care / electric / height-adjustable - image - 4
Hospital bed - YK-M305 - Topmost Medical Technology Co.,Ltd - intensive care / electric / height-adjustable - image - 5
Hospital bed - YK-M305 - Topmost Medical Technology Co.,Ltd - intensive care / electric / height-adjustable - image - 6
Add to favorites
Compare this product
Go to the Topmost Medical Technology Co.,Ltd website for more information

Characteristics

Applications
hospital, intensive care
Operation
electric
Features
height-adjustable, tilting
Component
on casters, with locking wheels
Number of sections
4-section
Height

Max.: 740 mm
(29.13 in)

Min.: 450 mm
(17.72 in)

Width

1,030 mm
(40.6 in)

Length

2,120 mm
(83.5 in)

Weight capacity

250 kg
(551.2 lb)

Description

Features:
  • Original product line: electric five-function ICU bed (this listing describes the manual three-function variant).
  • Designed for ICU use; linked back and leg plates allow sleeping, sitting and tilt positions.
  • 4-piece mattress platform.
  • Detachable PP head and foot boards in blue with patient record holder.
  • 2 detachable PP longer side boards to protect the patient from falling.
  • Quiet, lightweight crank system for reliable manual adjustment.
  • 4 individual lockable deluxe castors at corners, Ø125 mm.
  • Bearing capacity reported: 180 kg (working) / 270 kg (not working); other table notes motorized bed can support >250 kg.


Size:
  • Outside size (features): 2250 × 1050 × 450–740 mm (L × W × H).
  • Outside size (specifications table): 2150 × 1030 × 450–740 mm (L × W × H).
  • Inside mattress base: L1950 × W840 mm.


Function:
  • Back section: 0–75° by crank (± values reported in different tables).
  • Knee section: 0–35° by crank (other table shows 0–45°).
  • HI-LOW (height adjustable): 450–740 mm by crank.


Material:
  • Cold-rolled steel plate frame; electro-coating and powder-coating surface treatment.
  • Primary materials: steel and ABS; PP components for siderails.


Approval and Warranty:
  • Approvals: ISO13485; CE.
  • Warranty: One year after shipment.


Standard Accessories:
  • Head & foot board: 1 set (detachable ABS).
  • Guardrails: 2 pcs (PP siderails).
  • Castors: 4 pcs deluxe lockable castors (Ø125 mm).
  • Cranks: 3 pcs.
  • Handset: 1 pc (patient handset).
  • Urine hooks: 4 pcs (steel chrome with plastic dipping).
  • I.V. drip holes: 4 pcs.
  • I.V. pole: 1 pc.


Additional Notes / Specifications:
  • Model name (page title): YK-M305 (manual three-function bed).
  • Item No. in specification table: YK-M304 (conflicting entry).
  • Outside dimensions reported: 2250×1050×450–740 mm and 2150×1030×450–740 mm.
  • Inside mattress base: 1950×840 mm (L × W).
  • Back-rest adjustment: up to 75° by crank.
  • Knee-rest adjustment: up to 35° or up to 45° depending on table (by crank).
  • Height adjustment (HI-LOW): 450–740 mm by crank.
  • Bearing / safe working load: 180 kg (working) / 270 kg (not working); other text indicates >250 kg for motorized variant.
  • Materials: cold-rolled steel; electro-coating & powder-coating; ABS and PP components.
  • Head & foot boards: detachable ABS.
  • Guardrails: PP siderails (2 pcs standard).
  • Castors: 4 lockable deluxe castors, Ø125 mm.
  • Standard accessories include: 3 cranks, 1 handset, 4 urine hooks, 4 I.V. drip holes, 1 I.V. pole.
  • Approvals: ISO13485; CE. Warranty: 1 year after shipment.
  • Options: dining table; mattress; bedside cabinet.
