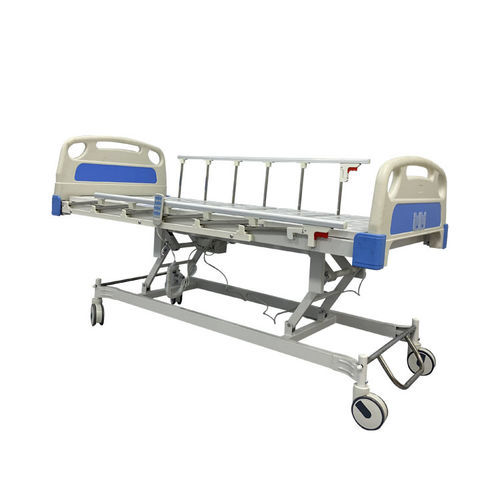

Hospital bed YK-E303

medicalelectricheight-adjustable

Overview:
This three-function electric hospital bed YK-E303 is designed for patient support, transfer and clinical use. Head and foot boards are detachable to facilitate patient handling. Side rails combine PP side boards and detachable aluminum rails with automatic lock. All adjustments are motorised and controlled by a handset for precise positioning. 4 central-lock castors enable safe transport.

Key features

• Model: YK-E303 (alternate Item No.: YK-E330)
• Overall size: 2120 x 970 x 450-740 mm (L x W x H)
• Mattress base inside: 1950 x 840 mm; 4-section sleeping platform
• Frame: cold-rolled steel plate with electro-coating and powder-coating
• Head & foot boards: detachable ABS, blue cover, patient record holder
• Side rails: PP side board and 2 detachable aluminum side rails with 6 aluminum tubes, automatic lock
• Motors: 3 electric motors (back, leg, Hi-Lo); motor brands: Timotion / Jiecang / JIECANG
• Actuators: quiet, robust electric actuators
• Castors: 4 central lockable castors, Ø125 mm
• Bearing capacity: entries indicate 180 kg, 270 kg; product support referenced over 250 kg
• Accessories included: 1 SS height-adjustable I.V. pole; 4 urine bag hooks; 4 I.V. drip holes

Technical specifications

• Name: Electric Three function Hospital Bed
• Item No.: YK-E330 (alternate)
• Outside size (product area): 2120 x 970 x 450-740 mm; table value: 1980 x 970 x 300-680 mm
• Mattress base inside: L1950 x W840 mm
• Height adjustment (Hi-Lo): 450-740 mm (product) / 300-680 mm (table)
• Back section angle: 0-75° / 0-80° (tolerances ±2–5%)
• Knee section angle: 0-40° / 0-45° (tolerances ±2–5%)
• Motor control: 1 handset, 1 control box, single plug
• Castors: 125 mm individual lock system (central lock on product)
• Materials: Steel frame and ABS components
• Approvals: ISO13485; CE
• Warranty: one year after shipment

Functions

• Back-rest lifting: 0-75° (±2%) by remote
• Knee-rest lifting: 0-45° (±2%) by remote
• Height adjustable (Hi-Lo): 300-680 mm or 450-740 mm by remote

Standard accessories

• Head & foot board: 1 set
• Guardrails: 2 pcs
• Wheels: 4 pcs
• Motors: 3 pcs
• Remote: 1 pc
• Urine hooks: 4 pcs
• I.V. drip holes: 4 pcs
• I.V. pole: 1 pc

Options and warranty

• Optional accessories: dining table; mattress; bedside cabinet
• Warranty: one year after shipment

Compliance and safety notes
Automatic locking side rails and standard certifications ensure conformity with medical safety requirements. Bearing capacities vary by configuration; confirm required safe working load when ordering.

Images and after-sales
Multiple product-detail images are available showing bed layout, head/foot boards, side rails, castors and accessories. 100% quality inspection before shipment and after-sales support available.
