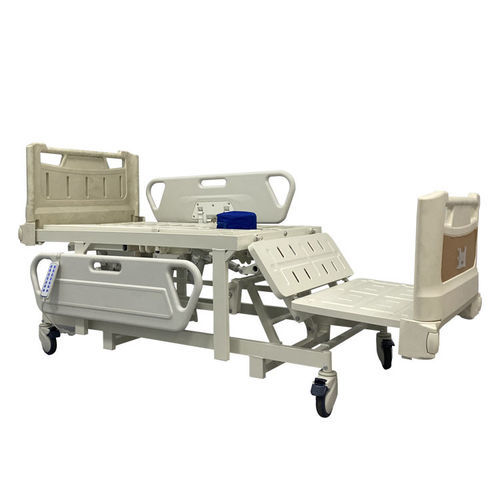

Medical bed YK-512a

hospitalelectricheight-adjustable

Overview
Electric five‑function hospital bed model YK-512a with four motor drives and four sleeping platforms. Designed for clinical use to facilitate patient repositioning, backrest and knee adjustment, height adjustment and lateral tilt for care procedures.

Dimensions & load
Overall size: 2200 × 980 × 525–740 mm (L × W × H). Mattress base inside: 1950 × 840 mm. Rated bearing capacity: 250 kg (safe working load noted as supporting over 180 kg).

Primary functions

• Backrest angle: up to 80° ±5°
• Knee rest angle: up to 40° ±5°
• Height (Hi‑Lo) adjustment: 525–740 mm
• Lateral tilt: 0–30° left and right

Materials & construction
Cold‑rolled steel frame with electrocoating and powder coating; MDF detachable headboard and footboard with bumpers; ABS components for trims and panels.

Drive & control
4 motors (back, leg, Hi‑Lo, auxiliary) with 1 handset and 1 control box. Motor brand options: Linak / JieCang / Taiwan motor. Quiet electric actuators provide smooth adjustments.

Mobility & brakes
4 individual locking castors at corners, diameter 125 mm (5"), central individual brake system.

Accessories & options

• Standard accessories: height‑adjustable stainless steel I.V. pole, 4 urine bag hooks, 4 I.V. drip holes
• Optional: dining table, mattress, bedside cabinet

Certifications & warranty
Approvals: ISO13485, CE. Warranty: one year after shipment.

Included items

• Head & foot boards: 1 set (detachable MDF)
• Side rails: 2 pcs (aluminum, detachable)
• Wheels/castors: 4 pcs
• Motors: 4 pcs
• Handset/remote: 1 pc
• Urine hooks: 4 pcs
• I.V. drip holes: 4 pcs
• I.V. pole: 1 pc

Technical specifications

• Model: YK-512a
• Product type: Electric five‑function hospital bed
• Overall dimensions: 2200 × 980 × 525–740 mm (L × W × H)
• Mattress base inside size: 1950 × 840 mm
• Adjustments: Backrest ≤80°±5°, Knee rest ≤40°±5°, Height 525–740 mm, Lateral tilt 0–30° L/R
• Materials: Cold‑rolled steel, ABS, MDF head/foot boards
• Drive system: 4 motors, 1 handset, 1 control box; motor brands: Linak / JieCang / Taiwan
• Castors: 125 mm diameter, individual lock
• Load capacity: rated 250 kg (safe working load statement supports >180 kg)
• Approvals: ISO13485, CE
• Warranty: 1 year after shipment
• Options: dining table, mattress, bedside cabinet

After‑sales & quality control

• 100% quality inspection before shipment with test report
• Manufacturing includes automated processes and welding; R&D support and customization available
• Spare parts and technical support available; standard commercial after‑sales procedures apply
