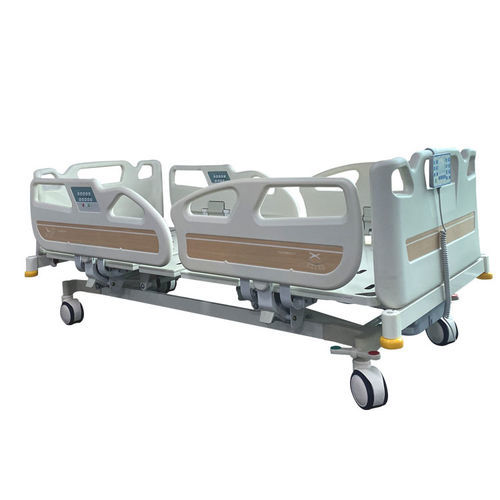

Intensive care bed YK-E506electricreverse TrendelenburgTrendelenburg
Add to favorites
Compare this product
Characteristics
- Applications
- intensive care
- Operation
- electric
- Features
- reverse Trendelenburg, Trendelenburg, tilting, height-adjustable
- Component
- on casters, with locking wheels
- Number of sections
- 4-section
- Height
Max.: 760 mm
(29.92 in)Min.: 440 mm
(17.32 in)- Width
Max.: 105 cm
(41.3 in)Min.: 105 cm
(41.3 in)- Length
Max.: 221 cm
(87 in)Min.: 221 cm
(87 in)- Weight capacity
Max.: 250 kg
(551.2 lb)Min.: 250 kg
(551.2 lb)
Description
Overview
Size / Dimensions
Functions
Construction & Materials
Motors, Controls & Battery
Mobility & Load Capacity
Accessories & Standard Equipment
Technical specifications
- Five-function electric ICU bed model YK-E506 designed for intensive care use; back and leg plates are linked to allow supine, sitting and tilt adjustments.
- Quiet linear actuators with German brand motors; standard configuration includes 4 motors, 1 handset, 1 battery, 1 control box and 1 nurse remote.
Size / Dimensions
- Main listing: 2210 × 1050 × 440–760 mm (L × W × H).
- Technical table: external dimension 2120 × 1030 × 450–740 mm.
Functions
- Height (HI‑LOW): 440–760 mm (listing) / 450–740 mm (table).
- Backrest adjustment: 0–80° (±5°).
- Knee/foot section: 0–40° (±5°) — technical table shows footrest 45°.
- Trendelenburg / Reverse Trendelenburg: 0–12°.
- Manual CPR access on two sides of the bed.
Construction & Materials
- Frame: cold-rolled steel plate treated by electro-coating and powder-coating.
- Sleep platform: 4 sections.
- Headboard and footboard: detachable ABS, blue color, with bumpers.
- Side boards: 4 detachable PP panels with angle indicator, patient button and degree display.
Motors, Controls & Battery
- Four linear electric actuators (German brand motor indicated).
- Controls: handset, nurse controller and control box; nurse remote includes battery status display and multi-color height indicator (green lowest, orange intermediate, white normal).
- Battery: 1 pc with display for backup power.
Mobility & Load Capacity
- 4 central lockable castors (Ø 125 mm) located at the 4 corners.
- Rated bearing capacity: 250 kg.
Accessories & Standard Equipment
- Stainless steel height-adjustable IV pole: 1 pc.
- Urine bag / drainage hooks: listed as 2 pcs in some sections and 4 pcs in others; 4 IV holes.
- Guardrails with controller: 2 pcs.
- Included: remote handset, nurse remote, control box and battery.
Technical specifications
- Model: YK-E506.
- External dimension (technical table): 2120 × 1030 × 450–740 mm; alternate dimension (main listing): 2210 × 1050 × 440–760 mm.
- Backrest max: 80°; footrest: 40–45°.
- Height adjustment: 440–760 mm (listing) / 450–740 mm (table).
- Trendelenburg / Reverse Trendelenburg: 0–12°.
- Motors: 4 linear motors (German brand indicated).
- Castors: 4 central lockable, Ø125 mm.
- Load capacity: 250 kg.
