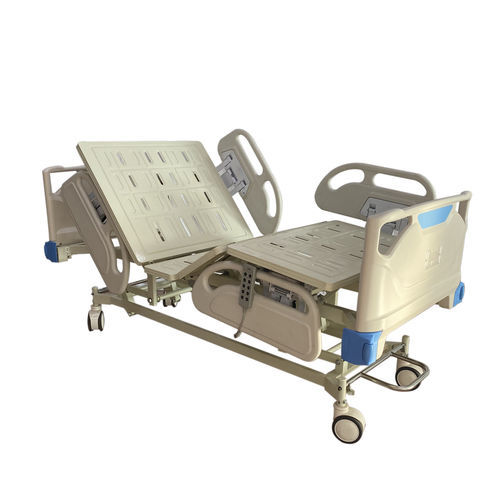

Hospital bed YK-E501

intensive careelectricreverse Trendelenburg

Overview
Five-function electric hospital bed designed for ICU and acute-care environments. Four sleeping platforms, TIMOTION linear motors, central locking castors and detachable head/foot boards for clinical use.

Size & Function

• External dimension: 2120 × 1050 × 450–740 mm (L × W × H)
• Height adjustment (HI-LOW): 450–740 mm
• Back section: 0–80° (±5°)
• Knee section: 0–40° (±5°)
• Trendelenburg: 0–12°
• Reverse Trendelenburg: 0–12°
• 4 sleeping platforms
• Detachable ABS head and foot boards, blue cover, with patient record holder

Construction & Safety

• Frame: cold-rolled steel plate with electrophoresis and powder-coating
• Side rails: 4 detachable PP rails with angle indicator (no side-wall buttons)
• Actuators: quiet, robust electric linear actuators
• Motors: TIMOTION (4 linear motors); control: 1 handset, 1 nurse controller, 1 control box, remote
• Castors: 4 central-lockable castors, diameter 125 mm
• Bearing capacity: 250 kg

Standard accessories

• Guardrails with controller: 2 pcs
• Central lock castors: 4 pcs
• Stainless steel height-adjustable IV pole: 1 pc
• ABS head and foot boards: 1 pair
• Drainage hooks: 2 pcs
• Linear motors: 4 pcs
• Battery: 1 pc
• Nurse controller: 1 pc
• Remote control: 1 pc
• Urine bag hooks: 4 pcs
• IV outlets/holes: 4 pcs

Technical parameters

• External dimension: 2120 × 1050 × 450–740 mm
• Backrest angle: up to 80°
• Footrest/knee angle: up to 40° (±5°); technical spec lists 45° as maximum footrest angle
• Height adjustment: 450–740 mm
• Trendelenburg / Reverse Trendelenburg: 0–12°

After-sales & production

• 100% quality inspection and test report before shipment
• Automated production (laser cutting, robotic welding) and high manufacturing capacity
• R&D support and customization options
• High monthly production and delivery capacity
• Professional sales support and technical advice
• Quality assurance policy and dedicated after-sales service
