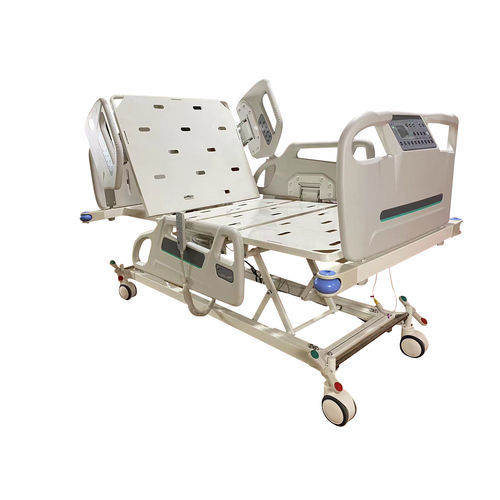

Hospital bed YK-E501
intensive careelectricheight-adjustable

Hospital bed - YK-E501 - Topmost Medical Technology Co.,Ltd - intensive care / electric / height-adjustable
Hospital bed - YK-E501 - Topmost Medical Technology Co.,Ltd - intensive care / electric / height-adjustable
Add to favorites
Compare this product
Go to the Topmost Medical Technology Co.,Ltd website for more information

Characteristics

Applications
hospital, intensive care
Operation
electric
Features
height-adjustable, Trendelenburg, reverse Trendelenburg
Component
on casters, with locking wheels, with weighing scale
Number of sections
5-section
Height

Max.: 770 mm
(30.31 in)

Min.: 440 mm
(17.32 in)

Width

105 cm
(41.3 in)

Length

221 cm
(87 in)

Weight capacity

250 kg
(551.2 lb)

Description

Product overview
  • Electric five-function hospital bed designed for ICU and general ward use, with integrated patient weighing function for continuous weight monitoring.
  • Model: YK-E501. Brand: Topmost. 4 electrically driven actuators (Taiwan motors) with handset and control box.
  • Detachable ABS head/foot boards with patient name card holder; nurse control on foot board.
  • 4 detachable PP side rails with angle indicator and patient-side control buttons. Central braking castors 125 mm diameter.


Key features
  • Integrated weighing system for in-bed weight measurement (displayed via control interface).
  • Five functions: backrest, knee section, height adjustment (HI-LOW), Trendelenburg and reverse Trendelenburg.
  • Quiet, reliable electric actuators and easy-to-use handset; optional electric or manual CPR release.
  • Adjustable IV pole, urine bag hooks and multiple IV holes for clinical accessories.


Main functional parameters
  • Overall size (L×W×H): 2210 × 1050 × 440–770 mm.
  • Back section: 0–80° (±5°).
  • Knee section: 0–40° (±5°).
  • HI-LOW (bed height): 450–740 mm.
  • Trendelenburg / Reverse Trendelenburg: 0–12°.
  • Optional CPR: manual release for back board or full electric CPR for all functions; LED height indication and battery status display.


Materials & construction
  • Frame and platform: cold-rolled steel plate with electrophoretic pretreatment and powder coating for corrosion resistance.
  • Head & foot boards: detachable ABS panels with patient name card holder.
  • Side rails: PP material, detachable, wood-effect color cover available.
  • Castors: 4 corner castors with central locking system, Ø125 mm.


Accessories & options
  • Standard: 1 stainless-steel height-adjustable IV pole (2 hooks), 4 urine bag hooks, 4 IV stand holes.
  • Options: electric CPR for all functions, manual CPR release, LED bed-height indicator, battery display, colour options (Blue/Green/Brown/Pink), OEM customization.


Packaging & logistics
  • Packing size: 2100 × 1100 × 470 mm. CBM: 1.5.
  • Frame assembled; side rails, head & foot boards packed separately. One piece per carton.
  • Delivery time: 10–20 days for stock items; private/custom orders ≈ 60 days.


After-sales & services
  • Warranty: 1-Year Limited Warranty.
  • After-sales: online technical support, onsite installation and training, spare parts supply.


Technical specifications
  • Brand Name: Topmost
  • Model Number: YK-E501
  • Place of Origin: Guangdong, China
  • Size: L2210 × W1050 × H440–770 mm
  • Function details: Back 0–80° (±5°); Knee 0–40° (±5°); Trendelenburg 0–12°; Reverse Trendelenburg 0–12°; HI-LOW 450–740 mm; optional manual/electric CPR; LED bed-height indicator; battery display.
  • Bearing Capacity: 250 kg
  • Motor: Taiwan motors, 4 motors, 1 handset, 1 control box
  • Head & foot boards: 1 pair, ABS, with patient name card holder
  • Wheels: 125 mm (5"), 4 pcs with central brake
  • Guardrails: 4 pcs PP side rails with patient control
  • I.V. stand: 1 pc stainless steel telescopic with 2 hooks; 4 IV stand holes; 4 drainage hooks
  • Color options: Blue / Green / Brown / Pink
  • Packing: Carton case, frame assembled, side rails/head & foot boards separate; CBM 1.5
  • OEM: Yes
