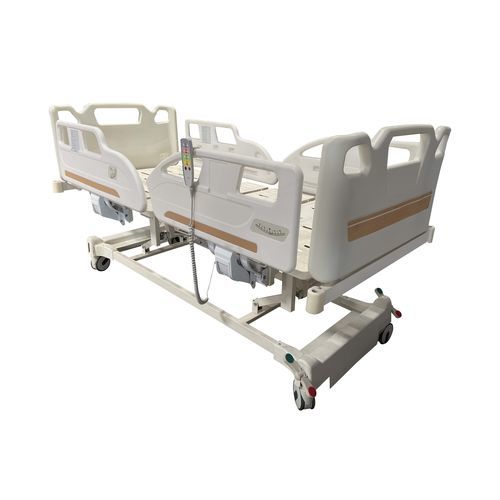

Hospital bed YK-E302C
medicalelectricheight-adjustable

Hospital bed - YK-E302C - Topmost Medical Technology Co.,Ltd - medical / electric / height-adjustable
Hospital bed - YK-E302C - Topmost Medical Technology Co.,Ltd - medical / electric / height-adjustable
Hospital bed - YK-E302C - Topmost Medical Technology Co.,Ltd - medical / electric / height-adjustable - image - 2
Hospital bed - YK-E302C - Topmost Medical Technology Co.,Ltd - medical / electric / height-adjustable - image - 3
Hospital bed - YK-E302C - Topmost Medical Technology Co.,Ltd - medical / electric / height-adjustable - image - 4
Add to favorites
Compare this product
Go to the Topmost Medical Technology Co.,Ltd website for more information

Characteristics

Applications
hospital, medical
Operation
electric
Features
height-adjustable
Component
with locking wheels, on casters
Number of sections
4-section
Height

Min.: 450 mm
(17.72 in)

Max.: 740 mm
(29.13 in)

Width

103 cm
(40.6 in)

Length

Min.: 212 cm
(83.5 in)

Max.: 215 cm
(84.6 in)

Weight capacity

250 kg
(551.2 lb)

Description

Overview
YK-E302C three-function electric hospital bed for clinical and care settings. Sizes, adjustment ranges and equipment options are listed below.

Key features
  • Overall size (page): 2150×1030×450-740 mm (L×W×H); external dimension (spec table): 2120×1030×450-740 mm
  • Height adjustment (Hi‑Low): 450–740 mm
  • Back section: 0–70° (±5°)
  • Knee/foot section: 0–45° (±5°)
  • 4-section mattress platform
  • Frame: cold-rolled steel plate, electro-coating and powder-coating finish
  • Detachable ABS head and foot boards (blue)
  • 4 detachable PP long side rails (wood color) with degree display
  • Quiet, durable electric actuators; motor brands available: Timotion / Linak / Jiecang (3 motors), includes 1 handset and 1 control box
  • 4 central lockable castors, dia. 125 mm
  • Safe working load (SWL): 250 kg
  • Included accessories: stainless-steel height-adjustable IV pole; 4 urine bag hooks; 4 IV access holes


Standard accessories
  • PP guardrails: 2 pcs
  • 125 mm central lock castors: 4 pcs
  • Stainless-steel IV pole: 1 pc
  • ABS head and foot boards: 1 pair
  • Drainage hooks: 2 pcs
  • Timotion motor (standard): 3 pcs
  • Handset (remote): 1 pc
  • Control box: 1 pc


Optional accessories
  • Foam mattress: 70–120 mm (PU, PVC or Nylon)
  • Motor options: Linak, Timotion, Jiecang
  • Backup battery
  • Guardrail sizes: 710×350 mm; 820×350 mm; 1080×350 mm
  • Color options: blue or wood
  • Independent brake castors (optional)


Technical specifications
  • External dimension: 2120×1030×450-740 mm
  • Dimension indicated on page: 2150×1030×450-740 mm
  • Backrest angle: up to 70°
  • Foot/knee angle: up to 45°
  • Height adjustment range: 450–740 mm
  • Safe working load (SWL): 250 kg
  • Motors: 3 pcs (Timotion / Linak / Jiecang options)
  • Castors: 4 central lockable, dia. 125 mm
  • Frame material/finish: cold-rolled steel plate with electro-coating and powder-coating
  • Head & foot boards: detachable ABS (blue)
  • Side rails: 4 detachable PP long rails (wood color) with degree display
  • Standard IV pole: 1 stainless-steel height-adjustable pole
