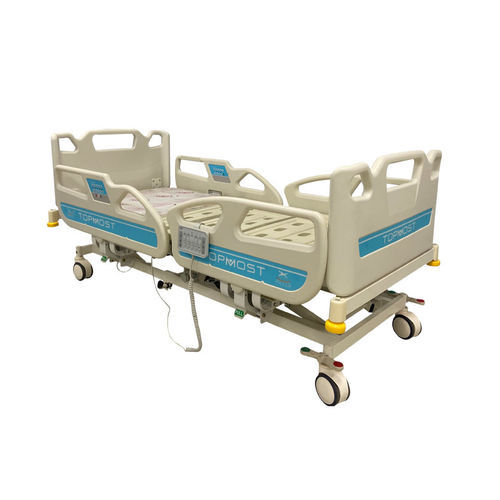

Hospital bed YK-E501electricheight-adjustableTrendelenburg
Add to favorites
Compare this product
Characteristics
- Applications
- hospital
- Operation
- electric
- Features
- height-adjustable, Trendelenburg, reverse Trendelenburg
- Component
- on casters, with locking wheels
- Number of sections
- 5-section
- Height
Max.: 850 mm
(33.46 in)Min.: 550 mm
(21.65 in)- Width
103 cm
(40.6 in)- Length
215 cm
(84.6 in)- Weight capacity
Max.: 250 kg
(551.2 lb)Min.: 240 kg
(529.1 lb)
Description
Technical parameters
Technical configuration
Standard accessories
Optional accessories
Detail images and diagrams
Multiple images and diagrams illustrate bed configurations, sectioning, component locations and attachment points for accessories.
Features / Technical specifications
- Model: YK-E501
- External dimension (L×W×H): 2150×1030×550–850 mm
- Back section: 0–75° (±5°)
- Knee section: 0–40° (±5°)
- Trendelenburg / Reverse Trendelenburg: 0–12°
- Safe working load (SWL): 240 kg (main description) / 250 kg (specification table)
Technical configuration
- Drive: 4 electric motors (Linak standard; Timotion/Jiecang optional); 1 handset; 1 nurse remote; 1 control box
- 4 central lockable castors, dia. 125 mm
- Detachable ABS head and foot boards with bumpers
- 4 detachable PP long side rails with patient control
- Degree display; fifth-direction steering wheel
- Acrylic back board with 3 ABS sleeper covers
- Manual CPR and electric CPR functions
- Accessories included: stainless steel height-adjustable IV pole (1 pc); 4 urine bag hooks; 4 IV holes
Standard accessories
- PP guardrails: 4 pcs
- 125 mm central lock wheels: 4 pcs
- Stainless steel IV pole: 1 pc
- ABS head and foot boards: 1 pair
- Drainage hooks: 2 pcs
- Motors (as listed): 4 pcs
- Remote handset: 1 pc
- Control box: 1 pc
Optional accessories
- Foam mattress 70–120 mm (PU, PVC or Nylon)
- Over-bed table; bedside cabinet
- Backup battery
- Motor options: Linak, Timotion, Jiecang
- Guardrail sizes: 710×350 mm; 820×350 mm; 1080×350 mm
- Color options: blue, green, wooden
- Castor options: independent brake castors
Detail images and diagrams
Multiple images and diagrams illustrate bed configurations, sectioning, component locations and attachment points for accessories.
Features / Technical specifications
- Model: YK-E501
- External dimension (L×W×H): 2150×1030×550–850 mm
- Backrest angle: up to 75°; knee section: up to 40°
- Height adjustment range: 550–850 mm
- Trendelenburg / Reverse Trendelenburg: 0–12°
- Safe working load: 240 kg (listed) / SWL 250 kg (spec table)
- Drive: 4 electric motors; control by handset and nurse remote
- Wheels: 4 central lockable castors, dia.125 mm (option for independent-brake castors)
- Side rails: 4 long PP side rails with patient control; PP guardrails (4 pcs)
- Head / foot boards: detachable ABS
- CPR: manual and electric CPR
- Additional features: degree display; fifth-direction wheel; acrylic back board; 3 ABS sleeper covers
- Included accessories: SS height-adjustable IV pole; drainage hooks; urine bag hooks; IV holes
- Optional accessories: mattress, over-bed table, bedside cabinet, backup battery
