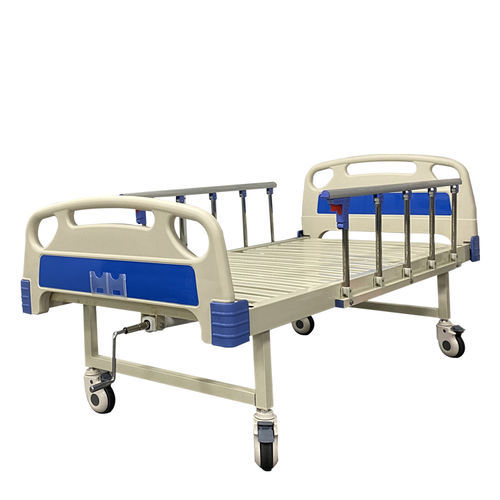

Hospital bed YK-M101

manualfixed-heighton casters

Features:

• Simple, medical-grade manual bed designed for general wards and care units
• Hand-crank mechanism for reliable manual adjustment of backrest
• Cold-rolled steel frame with electro-coating and powder-coating finish
• Detachable PP/ABS head and foot boards with integrated patient record holder
• Aluminum side rails (2 pcs) with 6 tubes for fall protection
• Quiet, lightweight crank operation suitable for routine ward use
• Cost-effective design with low maintenance requirements

Size:2120×970×500 mm (listed on main page).
Alternate external dimension reported in specification table: 2120×950×485 mm.

Function:

• Backrest adjustment: reported as 0–75° (±5°) in description; specification table lists 80°
• Footrest angle: 0°
• Height adjustment: no
• Bed platforms: 2 sleeping platforms
• Frame material: cold-rolled steel plate with electro-coating and powder-coating
• Head/foot boards: detachable PP/ABS, blue cover, with patient record holder
• Side rails: 2 aluminum rails with 6 aluminum tubes, up/down protection
• Operation: manual hand-crank system (quiet and light)
• Bearing capacity: specification table lists SWL 250 kg; other text mentions 180 kg (working) and 270 kg (non-working)
• Accessories noted: 1 stainless-steel height-adjustable IV pole; 4 drainage/urine hooks; 4 IV holes

Product Parameters (from specification tables):
External dimension: 2120×950×485 mm
Backrest angle: 80° (table) / Back section 0–75° (±5%) (description)
Footrest angle: 0°
Height adjustment: NO
SWL / Safe working load: 250 kg (table) — alternate bearing capacities appear elsewhere (180 kg working; 270 kg non-working)

Standard Accessories (as listed):

• Aluminum side rails: 2 pcs
• 125 mm caster wheels: 4 pcs
• Stainless-steel IV pole (height-adjustable): 1 pc
• ABS/PP head and foot board: 1 pair
• Drainage hooks: 4 pcs
• ABS crank: 1 pc

Additional product notes from page:

• Frame produced from cold-rolled steel plate, surface treated by electro-coating and powder-coating
• Hand-crank mechanism provided for manual backrest adjustment
• Includes patient record holder on head/foot board for ward use
• Intended application: general wards and care units

Technical specifications:

• Model identifier: YK-M101 (title) — images/filenames on site may also reference YK-M103
• Reported overall sizes: 2120×970×500 mm and 2120×950×485 mm
• Backrest adjustment: up to 80° (table) / 0–75° (±5%) (description)
• Footrest angle: 0°
• Height adjustment: no
• Safe working load (SWL): 250 kg (table); alternate values mentioned on page
• Bed platform: 2 sleeping platforms
• Side rails: aluminum, 2 pcs with 6 aluminum tubes
• Head & foot boards: detachable PP/ABS, blue cover, 1 pair
• Wheels: 125 mm, 4 pcs
• Accessories: SS IV pole (height-adjustable), 4 drainage hooks, 4 IV holes, ABS crank
• Construction: cold-rolled steel frame, electro-coating & powder-coating finish
