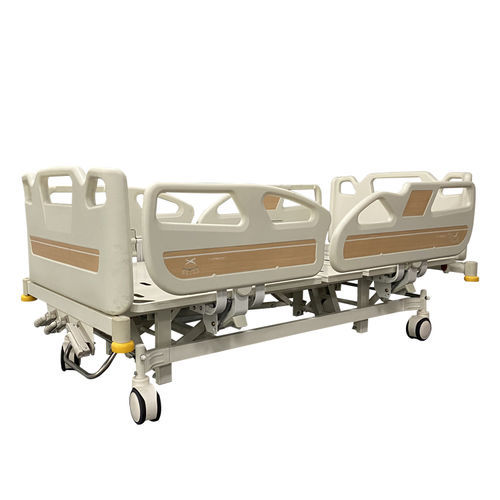

Hospital bed YK-M304

manualheight-adjustableon casters

Overview
Manual three-function hospital bed with crank-adjustable backrest, knee-rest and height. Designed with detachable ABS head and foot boards, PP siderails and deluxe lockable castors. Model designation: YK-M304. Item No.: YK-M309. Warranty: one year after shipment.

Specifications
Name: Manual Three-function Hospital Bed
Model designation: YK-M304
Item No.: YK-M309
Outside size (L×W×H): 2250 × 1050 × 450–740 mm
Mattress base inner size (L×W): 1950 × 840 mm
Materials: cold-rolled steel plate (electro-coating & powder-coating), ABS, PP
Head & foot boards: detachable ABS
Side rails: PP siderails
Handset: patient-operated handset
Castors: deluxe lockable castors, Ø 125 mm
Urine hooks: chrome-plated steel with plastic dipping
Approvals: ISO13485, CE
Options: dining table, mattress, bedside cabinet
Warranty: one year after shipment
Safe working load / bearing capacity: 180 kg (working); stated capability over 250 kg with electric motor (see notes).

Functions

• Backrest lift: 0–75° (±2%) by crank
• Knee-rest lift: 0–45° (±2%) by crank
• Height adjustment: H 450–740 mm by crank

Standard Accessories

• Head & foot board: 1 set
• Guardrails / side rails: 2 pcs
• Wheels / castors: 4 pcs
• Cranks: 3 pcs
• Handset: 1 pc
• Urine hooks: 4 pcs
• I.V. drip holes: 4 pcs
• I.V. pole: 1 pc

Features

• 4 sleeping platforms (sectioned mattress base)
• Detachable ABS head and foot boards with patient record holder (blue cover)
• 2 detachable PP long boards to prevent patient falling
• Quiet, lightweight crank system for reliable manual adjustment
• 4 individual lockable castors positioned at corners, Ø 125 mm
• Bearing capacity: 180 kg (working); 270 kg (static/non-operating)

Technical specifications

• Model designation on page header: YK-M304
• Item number shown in specification table: YK-M309
• Overall dimensions (L×W×H): 2250 × 1050 × 450–740 mm
• Mattress base inner size: 1950 × 840 mm
• Height adjustment range: 450–740 mm (crank)
• Back section angle: 0–75° (crank)
• Knee section angle: 0–45° (crank)
• Materials: cold-rolled steel (electro-coating & powder-coating), ABS, PP
• Head & foot boards: detachable ABS
• Side rails: PP siderails
• Castors: deluxe lockable castors (4 pcs), Ø 125 mm
• Standard accessories included (see list above)
• Approvals: ISO13485, CE
• Warranty: one year after shipment
• Options: dining table, mattress, bedside cabinet
