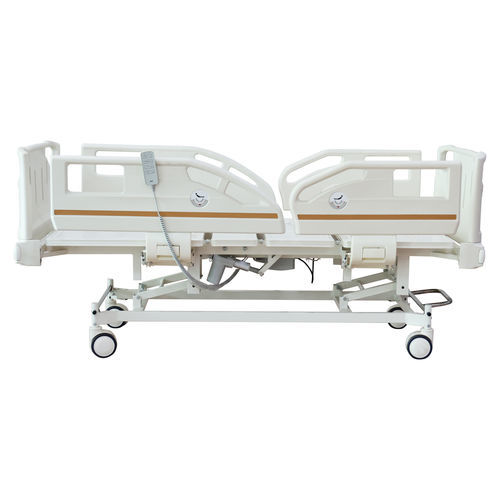

Hospital bed YK-E305

electricheight-adjustabletilting

Features:

• Ergonomic linked design: back and leg plates are connected to facilitate transitions between lying and sitting positions with adjustable tilt.
• Quiet, durable electric actuators for reliable movement.
• Frame: cold-rolled steel plate with electro-coating and powder-coating for stable corrosion resistance.
• Detachable ABS head and foot boards in wood finish.
• Four detachable PP long side rails in wood finish with degree display.
• Four central lockable castors at corners, Ø125 mm.
• Motor configuration: 3 motors (Linak specified in main description; Timotion listed in accessories), with 1 handset and 1 control box.
• Safe working load: 250 kgs.
• Included accessories: height-adjustable stainless steel IV pole, urine bag hooks and IV insertion holes.

Size:
2230×1050×450–740 mm (L×W×H) — primary specification; external dimension in spec table: 2120×1030×450–740 mm.

Function:

• HI-LOW height adjustment: 450–740 mm
• Back section tilt: 0–80° (±5°)
• Knee section tilt: 0–40° (±5°)
• Four sleeping platforms (back, knee, foot, overall)

Product Parameters:

• External dimension: 2120×1030×450–740 mm
• Backrest angle (spec table): 70°
• Footrest angle (spec table): 45°
• Height adjustment: 450–740 mm
• SWL (Safe working load): 250 kgs

Standard Accessories:

• PP guardrails: 2 pcs
• 125 mm central lock wheels: 4 pcs
• Stainless steel IV pole (height adjustable): 1 pc
• ABS head and foot boards: 1 pair
• Drainage hooks: 2 pcs
• Motors (as provided): 3 pcs
• Handset (remote): 1 pc
• Control box: 1 pc

Optional Accessories:

• Foam mattress 70–120 mm (PU, PVC or Nylon)
• Motor options: Linak, Timotion or Jiecang
• Backup battery
• Guardrail sizes: 710×350 mm; 820×350 mm; 1080×350 mm
• Color options: blue or wood finish
• Independent brake castors

Technical specifications:

• Model: YK-E305
• Brand: TOPMOST MEDICAL TECHNOLOGY CO.,LTD.
• Frame material and finish: cold-rolled steel plate with electro-coating & powder-coating
• Sections: 4 sleeping platforms (back, knee, foot, overall)
• Height range (HI-LOW): 450–740 mm
• Back section range: 0–80° (±5°) — spec table indicates 70°
• Knee/foot section range: 0–40° (±5°) — spec table indicates 45°
• Motors: 3 motors (Linak specified in main description; Timotion also referenced)
• Control: 1 handset, 1 control box
• Safe working load (SWL): 250 kgs
• Castors: 4 central lockable castors Ø125 mm
• Included accessories: height-adjustable SS IV pole, urine bag hooks, IV holes, drainage hooks
