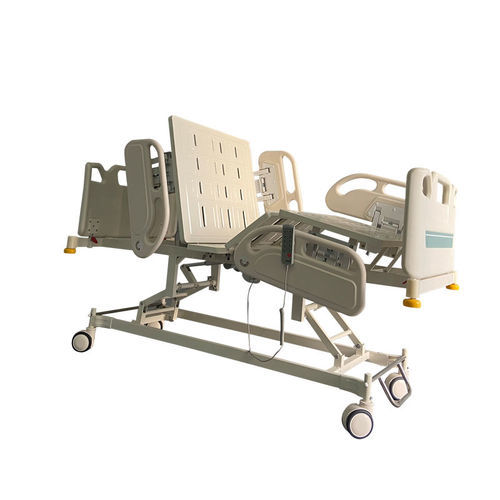

Hospital bed YK-E502electricheight-adjustableTrendelenburg
Add to favorites
Compare this product
Characteristics
- Applications
- hospital
- Operation
- electric
- Features
- height-adjustable, Trendelenburg, reverse Trendelenburg
- Component
- on casters, with locking wheels
- Height
Max.: 740 mm
(29.13 in)Min.: 450 mm
(17.72 in)- Width
103 cm
(40.6 in)- Length
212 cm
(83.5 in)- Weight capacity
240 kg
(529.1 lb)
Description
Technical parameters
Technical configuration
Characteristics / Technical specifications
- Overall size: L2120 × W1030 × H450–740 mm
- Back section angle: 0–75° (±5°)
- Knee section angle: 0–40° (±5°)
- Trendelenburg: 0–12°
- Reverse Trendelenburg: 0–12°
- Safe Working Load (SWL): 240 kg
Technical configuration
- Drive system: Timotion 4-motor system with handset and control box
- Electric CPR function
- Head and foot boards: detachable ABS panels
- Side rails: 4 detachable PP side boards
- Castors: 4 central-locking castors at corners, Ø125 mm
- Accessories: 1 stainless-steel height-adjustable I.V. pole; 4 urine bag hooks; 4 I.V. holes
Characteristics / Technical specifications
- Model: YK-E502
- Function: Five-function electric hospital bed (back, knee, Trendelenburg, reverse Trendelenburg, height adjustment)
- Platform sections: segmented back and knee sections with electric articulation
- Adjustment range: back 0–75°; knee 0–40°; Trendelenburg/reverse 0–12°
- Load capacity: SWL 240 kg
- Control: wired handset and control box for clinical operation
- Mobility & safety: central locking castors Ø125 mm for secure positioning
- Materials & fittings: detachable ABS head/foot boards, PP side boards, stainless-steel I.V. pole and hooks
