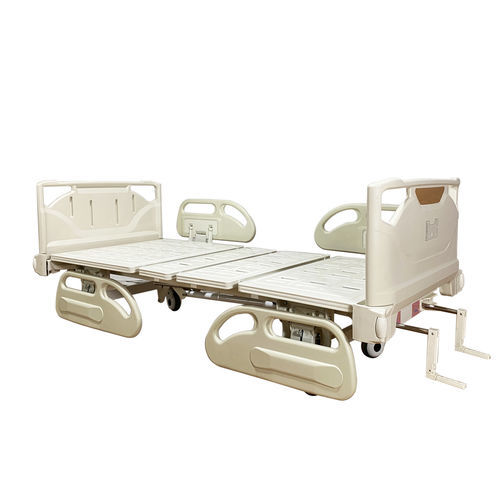

Hospital bed YK-M202

manualfixed-heighton casters

Technical parameters

• External size: L2120×W1030×H500 mm
• Back section: 0–75° (±5°)
• Knee section: 0–40° (±5°)
• Safe working load (SWL): 240 kg (also listed as 250 kg)

Technical configuration

• Detachable PP head and foot boards
• 4 detachable PP boards
• ABS hand crank (2 pcs)
• 4 individual lockable castors, dia.125 mm
• Accessories: 1 stainless steel height-adjustable IV pole; 4 urine bag hooks; 4 IV holes

Specification table
External dimension: 2120×1030×500 mm
Backrest angle: 80°
Footrest angle: 35°
Height adjustment: No
SWL - Safe working load: 250 kg

Standard Accessories

• Aluminum siderails: 2 pcs
• 125 mm wheels: 4 pcs
• S.S. IV pole: 1 pc
• ABS head and foot board: 1 pair
• Drainage hook: 4 pcs
• ABS crank: 2 pcs

Technical characteristics

• Model: YK-M202
• Brand: TOPMOST MEDICAL
• External dimension: 2120×1030×500 mm
• Back section / Backrest angle: 0–75° (±5°) (also listed as 80°)
• Knee / Foot section angle: Knee 0–40° (±5°); Footrest 35°
• Height adjustment: No
• Safe working load (SWL): 240 kg (also listed as 250 kg)
• Detachable PP head & foot boards; 4 detachable PP boards
• ABS hand crank (2 pcs)
• Castors: 4 individual lockable castors, dia.125 mm
• Accessories: 1 stainless steel height-adjustable IV pole; 4 urine bag hooks; 4 IV holes
• Aluminum siderails: 2 pcs
