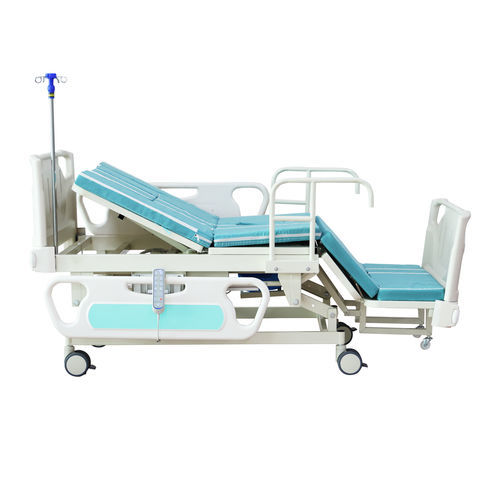

Hospital bed YK-512intensive carenursing homeelectric
Add to favorites
Compare this product
Characteristics
- Applications
- hospital, intensive care, nursing home
- Operation
- electric
- Features
- height-adjustable, Trendelenburg, reverse Trendelenburg, lateral tilting
- Component
- on casters, with locking wheels
- Height
Max.: 740 mm
(29.13 in)Min.: 500 mm
(19.69 in)- Width
1,030 mm
(40.6 in)- Length
2,120 mm
(83.5 in)- Weight capacity
240 kg
(529.1 lb)
Description
Overview
Technical parameters
Technical configuration
Specifications & notes
- Five-function electric nursing bed designed for hospital, ICU and long-term care use. Motorized adjustments support patient positioning for sleeping, sitting, procedures and lateral transfer.
Technical parameters
- External dimension: L2120×W1030×H500-740 mm (also reported as 2120×1030×550-740 mm)
- Height adjustment (Hi-Low): 500–740 mm (alternative reference: 550–740 mm)
- Back section: 0–75° (±5°); table reference 80°
- Knee/foot section: 0–40° (±5°); table reference 30°
- Left/right roll: 0–30° (alternatively reported as 45°)
- Trendelenburg / Reverse Trendelenburg: 0–12°
- Safe working load (SWL): 240 kg
Technical configuration
- Actuation: electric (Jiecang motor)
- Detachable ABS head and foot boards
- 2 PP long side rails with automatic lock
- Built-in electric toilet aperture: 280×220 mm
- 1 stainless steel telescopic IV pole (included)
- 4 individual lockable castors (Ø 125 mm) at the four corners
- Accessories: 4 urine bag hooks; 4 IV holes
Specifications & notes
- Model: YK-512
- Suitable for wards, ICU and long-term care facilities
- Product information shows minor variations in external dimensions, height range and angle values; confirm preferred specification with supplier before ordering
- When ordering, specify required accessories, side-rail orientation and local electrical standards compliance
