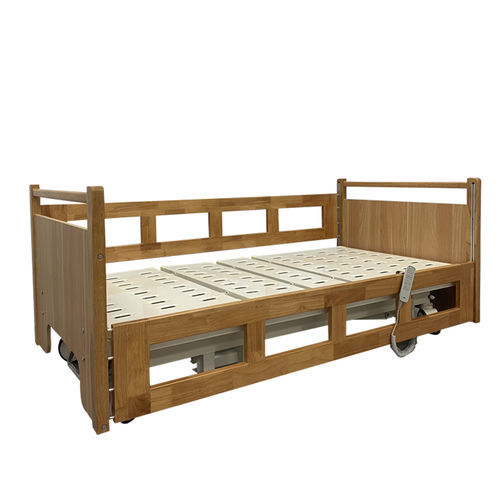

Home care bed YK-E313

electricheight-adjustableTrendelenburg

Overview
Furniture-style nursing bed that combines medical functionality with a home-like design; adjustable positions and intuitive controls to support patient comfort, mobility and caregiver tasks.

Size
L2120 x W970 x H350–680 mm (L*W*H)

Function

• Backrest angle: 80° ±5°
• Kneerest angle: 40° ±5°
• Height adjustment (without mattress): 350–680 mm
• Trendelenburg / reverse Trendelenburg: 12°

Material
Cold-rolled steel plate frame with electro-coating and powder coating; MDF head and foot boards; ABS components.

Features

• Detachable solid-style MDF head and foot boards with bumpers
• Two-piece aluminum side rails with stainless steel bars, collapsible with safety lock; option for wooden side board
• Bed frame made from ERW mild steel rectangular tubes
• Four 5" individual castors with individual locks
• Equipped with 3 motors (brands: Linak / JieCang / Taiwan motor)
• Bearing capacity: 250 KG
• Electric 3-function operation: backrest, kneerest, Hi‑Lo (backrest & kneerest can move together)
• Accessories included: 1 telescopic stainless-steel IV pole; 4 urine bag hooks; 4 IV holes

Key specifications
Name: Electric Three-function Hospital Bed; Item No.: YK-Eh310 (alternate). Outside size: L2120 x W970 x H350–680 mm. Mattress base inside size: L1950 x W840 mm. Warranty: 1 year after shipment. Head/foot board: detachable MDF with bumpers. Side rails: 2 aluminum side rails with S.S. bars. Motor system: 3 motors (back board, leg board, Hi‑Lo), remote, control box, plug. Castors: 5" individual lock castors. Urine hooks: 4. Approvals: ISO13485; CE. Raw materials: steel, ABS, MDF. Options: dining table, mattress, bedside cabinet. Safe working load: supports over 180 kg (table note).

Functions (detailed)

• Back-rest lifting: 0–75° (±2%) via remote
• Knee-rest lifting: 0–45° (±2%) via remote
• Height adjustment: H350–680 mm via remote

Standard accessories

• Head & foot board: 1 set
• Guardrails: 4 pcs
• Wheels: 4 pcs
• Motors: 3 pcs
• Remote: 1 pc
• Urine hooks: 4 pcs
• I.V. drip holes: 4 pcs
• I.V. pole: 1 pc

Technical specifications

• Model name: YK-E313 Electric home care bed
• Alternate item number: YK-Eh310
• Overall dimensions: L2120 x W970 x H350–680 mm
• Mattress base inside size: L1950 x W840 mm
• Adjustment functions: Backrest, Kneerest, Hi‑Lo (electric 3-function)
• Backrest angle: up to 80° (approx.)
• Kneerest angle: up to 40° (approx.)
• Height range (without mattress): 350–680 mm
• Trendelenburg / Reverse Trendelenburg: 12°
• Motors: 3 motors (brands: Linak / JieCang / Taiwan motor) with remote and control box
• Castors: 5" individual lock castors
• Bearing capacity: 250 KG; safe working load noted as over 180 kg
• Head & foot board: detachable MDF with bumpers
• Side rails: 2 aluminum side rails with stainless steel bars, collapsible with safety lock
• Standard accessories: IV pole; urine bag hooks (4); IV holes (4)
• Approvals: ISO13485; CE
• Materials: steel frame, ABS components, MDF wooden boards
• Optional accessories: dining table, mattress, bedside cabinet
