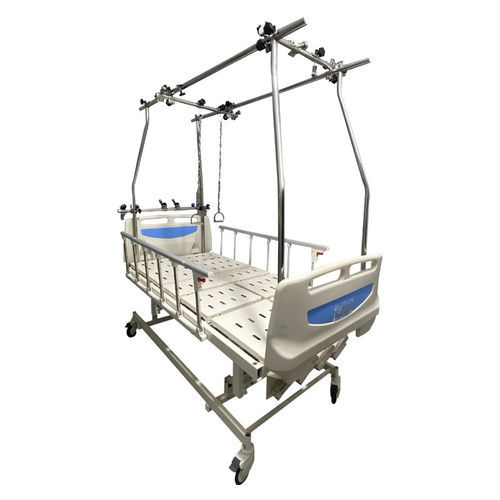

Hospital bed YK-M304Amedicalmechanicalheight-adjustable
Add to favorites
Compare this product
Characteristics
- Applications
- hospital, medical
- Operation
- mechanical
- Features
- height-adjustable
- Component
- on casters, orthopedic traction frame
- Number of sections
- 3-section
- Height
Max.: 740 mm
(29.13 in)Min.: 450 mm
(17.72 in)- Width
97 cm
(38.2 in)- Length
216 cm
(85 in)- Weight capacity
240 kg
(529.1 lb)
Description
Technical parameters
Technical configuration
Accessories
Technical specifications
- Size: L2160 x W970 x H450-740 mm
- Back section: 0-75°
- Knee section: 0-40°
- Height adjustment (Hi-Low): 450-740 mm
- Left and right leg sections (independent)
- Safe working load (SWL): 240 kg
Technical configuration
- Removable ABS head and foot boards
- 2 aluminum side rails with six stainless-steel bars
- Perforated steel bed sheet top with epoxy powder coated and baked finish
- Individual 5-inch deluxe castors with brake
- Double stainless-steel traction frame with lift (optional: aluminum)
Accessories
- 1 pc stainless-steel telescopic IV pole
- 4 urine bag hooks
- 4 IV access holes
- Options: shoe shelf, dining table
Technical specifications
- Model: YK-M304A
- Overall dimensions: L2160 x W970 x H450-740 mm
- Backrest angle range: 0-75°
- Knee section angle range: 0-40°
- Height range (Hi-Low): 450-740 mm
- Independent left and right leg sections
- Safe working load: 240 kg
- Removable ABS head and foot boards
- Aluminum side rails with six stainless-steel bars (2 pcs)
- Perforated steel bed sheet top with epoxy powder coated and baked finish
- Individual 5-inch castors with brake
- Double stainless-steel traction frame with lift (optional aluminum)
- Included accessories: telescopic SS IV pole, urine bag hooks, IV holes
- Optional accessories: shoe shelf, dining table
