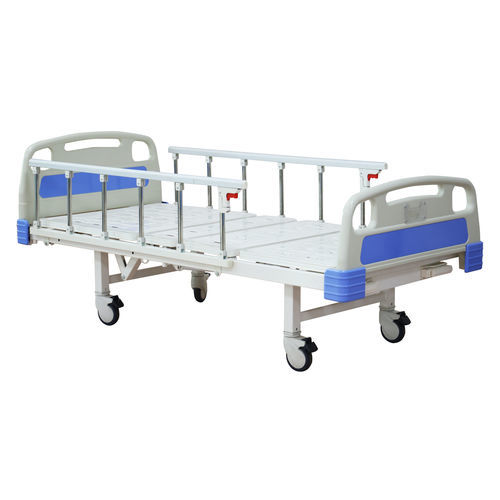

Hospital bed YK-M201

medicalmanualfixed-height

Overview
Two-function manual hospital bed YK-M201 designed for general wards and care units. Manual operation allows independent adjustment of backrest and leg section. Practical configuration for facilities seeking a cost-effective, low-maintenance patient bed.

Key features

• Simple manual mechanism for backrest and knee section adjustment
• Four sleeping platforms enabling sectional adjustment
• Detachable head and foot boards (PP referenced in main text; ABS indicated in accessories table) with patient record holder and blue cover option
• Two aluminum side rails with six aluminum tubes, adjustable up/down to reduce fall risk
• Quiet, low-force crank system for reliable manual operation
• Four individual lockable castors at corners, diameter 125 mm
• Standard accessories include height-adjustable stainless steel I.V. pole, urine bag/drainage hooks and ABS cranks

Functions

• Back section: 0–75° (±5°) (manual adjustment as listed); table also reports 80°
• Knee/foot section: 0–35° (±5°) (manual adjustment as listed); table also reports 45° for footrest
• No height adjustment (fixed deck height)

Dimensions & technical data
Main external dimension listed: 2120 × 970 × 500 mm (L×W×H). Specification table also shows 2120 × 950 × 485 mm. Safe working load values reported on the page: 180 kg (working), 250 kg (SWL in table), 270 kg (not working).

Materials & construction

• Frame: cold-rolled steel plate with electro-coating and powder-coating finish
• Siderails: aluminum (2 pcs) with multiple tubes
• Head & foot boards: detachable PP or ABS (1 pair depending on variant)
• Sleep platforms: 4 sections
• Castors: 4 lockable castors, Ø125 mm

Safety & load capacity
The bed includes adjustable siderails and four corner locking castors to enhance patient safety. Multiple bearing capacity values are reported on the product page; buyers should verify required load capacity for their application.

Standard accessories

• Aluminum siderails — 2 pcs
• 125 mm wheels — 4 pcs (individual locking)
• Stainless steel height-adjustable I.V. pole — 1 pc
• Head and foot board (ABS/PP) — 1 pair
• Drainage/urine bag hooks — 4 pcs
• ABS cranks — 2 pcs

After-sales & production notes

• 100% quality inspection before shipment with test report
• Manufacturer capabilities noted: laser tube cutting, Panasonic robotic welding, >60% production automation
• Strong R&D support and customization options
• Monthly production and delivery capacity reported >3000 units
• Commercial experience >10 years with post-sale support policies

Notes & images
Multiple product images and detail photos are provided on the product page showing bed structure, siderails, cranks and accessories. Model references on the page include YK-M201 (title) and YK-M202 (image filenames); dimensions and angle values vary between text and table—confirm final specifications with the supplier prior to purchase.
