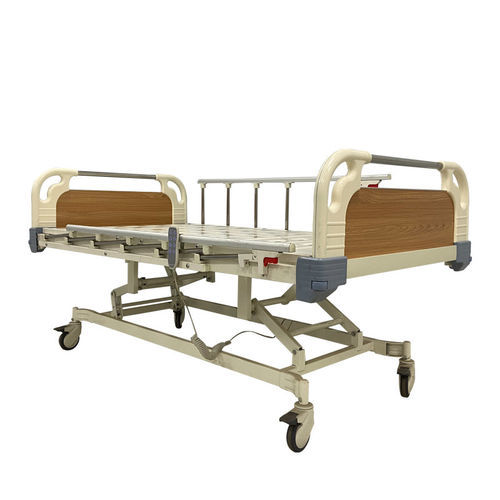

Hospital bed YK-E301bintensive careelectricheight-adjustable
Add to favorites
Compare this product
Characteristics
- Applications
- hospital, intensive care
- Operation
- electric
- Features
- height-adjustable, tilting
- Component
- on casters, with locking wheels
- Number of sections
- 3-section
- Height
Max.: 680 mm
(26.77 in)Min.: 270 mm
(10.63 in)- Width
1,300 mm
(51.2 in)- Length
2,120 mm
(83.5 in)- Weight capacity
250 kg
(551.2 lb)
Description
Product overview
Key specifications
Function
Standard accessories
Technical specifications
Certifications & warranty
Options
Installation & maintenance
- Electric three-function hospital bed YK-E301b designed for acute care, recovery and long-term wards
- Steel frame with detachable ABS head and foot boards and detachable aluminium side rails with automatic lock
- Three-motor system (back-rest, leg-rest, Hi-Lo) with Timotion / Jiecang / Junesun options and wired handset
- Safe working load ≥ 250 kg and individual lockable 125 mm castors
Key specifications
- Item No.: YK-E301b
- Overall size: L2120 × W1300 × H270-680 mm
- Mattress base size: L1950 × W840 mm
- Materials: steel frame; detachable ABS head & foot boards; aluminium side rails
- Motor system: 3 motors (back, leg, Hi-Lo); handset and control box included
- Castors: 4 individual lockable castors, Ø125 mm
- Bearing capacity: 250 kg
- Accessories included: stainless steel adjustable IV pole, urine bag hooks, IV drip holes
Function
- Back-rest lifting: 0–75° (±2%) controlled by handset
- Knee-rest lifting: 0–45° (±2%) controlled by handset
- Height adjustment (Hi-Lo): 270–680 mm controlled by handset
Standard accessories
- Head & foot boards: 1 set
- Side rails: 2 pieces (detachable)
- Castors: 4 pieces (individual lock)
- Motors: 3 pieces
- Handset: 1 piece
- Urine hooks: 4 pieces
- IV drip holes: 4 pieces
- IV pole: 1 piece (stainless steel, height adjustable)
Technical specifications
- Motor brands: Timotion / Jiecang / Junesun
- Motor configuration: 1 back-rest motor, 1 leg-rest motor, 1 Hi-Lo motor; control box and plug included
- Side rails: aluminium rail with automatic lock
- Urine hooks: steel chrome with plastic coating
- Raw materials: steel and ABS
- Castor diameter: 125 mm
Certifications & warranty
- Approvals: ISO13485, CE, mdma
- Warranty: one year after shipment
Options
- Dining table
- Mattress (various types available)
- Bedside cabinet
Installation & maintenance
- Delivered with removable boards and parts for straightforward on-site assembly
- Follow manufacturer instructions for motor and electrical connections
- Regularly check castors, side-rail locks and electrical connections; clean ABS panels with non-abrasive disinfectant
