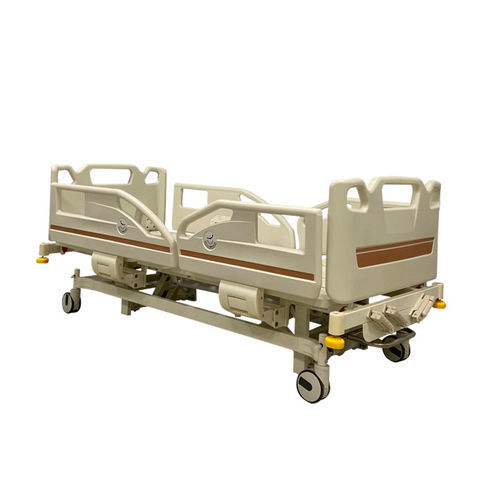

Hospital bed YK-M305intensive caremanualheight-adjustable
Add to favorites
Compare this product
Characteristics
- Applications
- hospital, intensive care
- Operation
- manual
- Features
- height-adjustable
- Component
- on casters, with locking wheels
- Number of sections
- 3-section
- Height
Min.: 450 mm
(17.72 in)Max.: 740 mm
(29.13 in)- Width
Min.: 103 cm
(40.6 in)Max.: 105 cm
(41.3 in)- Length
Min.: 215 cm
(84.6 in)Max.: 225 cm
(88.6 in)- Weight capacity
Min.: 180 kg
(396.8 lb)Max.: 270 kg
(595.2 lb)
Description
Product overview
Key features
Dimensions & load capacity
Functions & adjustment ranges
Materials & finish
Standard accessories
Certifications, warranty & options
Notes
- Name: Manual three-function hospital bed (market title: YK-M305)
- Item No.: YK-M304 (specified on technical sheet)
- Intended use: hospital wards and ICU; manual crank adjustment for back, knee and height
Key features
- 4-section mattress platform for segmented positioning
- Back and leg plates linked in design for coordinated adjustment
- Detachable ABS headboard and footboard; detachable PP longer boards for fall protection
- Manual crank system (quiet, light) for reliable operation
- 4 individual lockable deluxe castors, Ø 125 mm
Dimensions & load capacity
- Outside size (variants reported): 2250×1050×450-740 mm and 2150×1030×450-740 mm (L×W×H)
- Internal mattress base size: L1950×W840 mm
- Height range: H 450–740 mm
- Bearing capacity reported on page: 180 kg (working) / 270 kg (static). Note: other text blocks on the page mention a motorized variant and a capacity >250 kg; verify required capacity when ordering.
Functions & adjustment ranges
- Back-rest: 0–75° (tolerance reported ±2% / ±5% depending on section)
- Knee-rest: 0–35° (±5%) or 0–45° (±2%) — both values appear in the documentation
- Height adjustment: 450–740 mm by crank
Materials & finish
- Frame: cold-rolled steel plate with electro-coating and powder-coating
- Head/foot boards: detachable ABS (some blocks mention PP variants)
- Side rails/guardrails: PP
Standard accessories
- Head & foot board: 1 set
- Guardrails: 2 pcs
- Wheels/castors: 4 pcs (lockable)
- Cranks: 3 pcs
- Handset (patient control): 1 pc
- Urine hooks: 4 pcs (steel chrome + plastic dipping)
- I.V. drip holes: 4 pcs; I.V. pole: 1 pc
Certifications, warranty & options
- Approvals: ISO13485; CE
- Warranty: one year after shipment
- Options available: dining table, mattress, bedside cabinet
Notes
- Documentation on the page contains mixed references to a five-function electric ICU bed and to this manual three-function model. Confirm required configuration (manual vs electric) and the correct item number when requesting a quote.
- Technical discrepancies on knee angle and external dimensions are present in the source; use the specification sheet provided with the offer as final reference.
