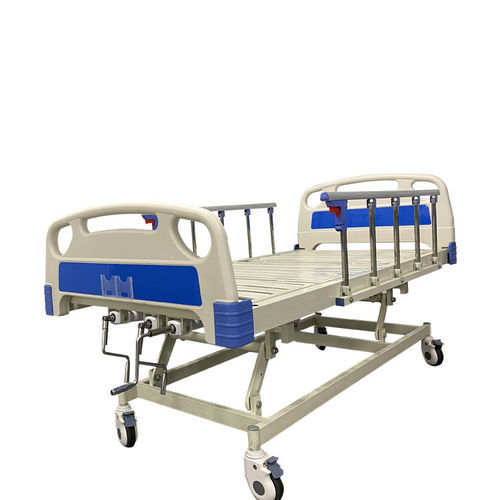

Hospital bed YK-E301

manualheight-adjustableon casters

Features:

• Simple structure with easy manual operation suitable for ward and care environments
• Manual adjustment for backrest and leg rest angles
• Cost-effective and low maintenance design for routine clinical use
• Durable construction designed for patient safety

Size:
2120×1030×450-700 mm (L×W×H)

Function / Construction & Components:

• Back section: 0–75° (±5°)
• Knee/foot section: 0–35° (±5°)
• Frame: cold-rolled steel plate, electro-coating & powder-coating finish
• Deck: 4 sleeping platforms
• Detachable PP head and foot boards, blue cover color, with patient record holder
• Side rails: 2 aluminium side rails with 6 aluminium tubes to prevent patient fall
• Quiet, lightweight manual crank system for adjustment
• 4 individual lockable castors, diameter 125 mm

Accessories:

• 1 pc stainless steel height-adjustable I.V. pole
• 4 pcs urine bag hooks
• 4 pcs I.V. holes

Notes on bearing capacity (as stated on page):

• Feature area: Bearing Capacity: 180 kgs (working), 270 kgs (not working)
• Technical table: SWL / Safe working load: 250 kgs

Technical parameters (table):
External dimension: 2120×1030×450-700 mm
Backrest angle: 70°
Footrest angle: 45°
Height adjustment: 450–700 mm
SWL - Safe working load: 250 kgs

Additional details (product images):

• Main images and multiple product views included in the gallery (product photos files identified with model YK-M303).
