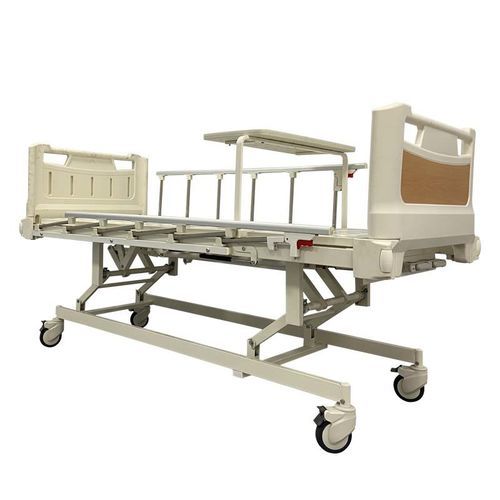

Hospital bed YK-M306
medicalhome caremanual

Hospital bed - YK-M306 - Topmost Medical Technology Co.,Ltd - medical / home care / manual
Hospital bed - YK-M306 - Topmost Medical Technology Co.,Ltd - medical / home care / manual
Hospital bed - YK-M306 - Topmost Medical Technology Co.,Ltd - medical / home care / manual - image - 2
Hospital bed - YK-M306 - Topmost Medical Technology Co.,Ltd - medical / home care / manual - image - 3
Add to favorites
Compare this product
Go to the Topmost Medical Technology Co.,Ltd website for more information

Characteristics

Applications
hospital, medical, home care
Operation
manual
Features
height-adjustable
Component
on casters, with locking wheels
Number of sections
4-section
Height

Max.: 720 mm
(28.35 in)

Min.: 430 mm
(16.93 in)

Width

97 cm
(38.2 in)

Length

212 cm
(83.5 in)

Weight capacity

Max.: 270 kg
(595.2 lb)

Min.: 180 kg
(396.8 lb)

Description

Product overview
  • Three-function manual hospital bed for clinical and homecare environments, suitable for patient positioning and basic nursing care.


Size & function
  • Overall dimensions: 2120 × 970 × 430–720 mm (L × W × H).
  • Back section: 0–75° (±5°).
  • Knee section: 0–35° (±5°).
  • Height adjustment (HI-LOW): 450–740 mm.


Construction & materials
  • Frame: cold-rolled steel plate with electro-coating and powder-coating finish for corrosion resistance and durability.
  • Sleeping platform: 4-piece mattress platform for sectional adjustment.
  • Head and foot boards: detachable PP panels in blue, with patient record holder.
  • Side rails: 2 detachable aluminum side rails with 6 aluminum tubes, adjustable to prevent patient falls.


Mechanisms & mobility
  • Manual crank system: low-noise, smooth and reliable manual operation for adjustments.
  • Castors: 4 individual lockable castors located at corners, Ø 125 mm for mobility and stability.


Capacity & accessories
  • Rated bearing capacity: 180 kg (working); maximum static capacity: 270 kg.
  • Standard accessories: 1 stainless steel height-adjustable IV pole; 4 urine bag hooks; 4 IV holes.


Product detail images
  • Multiple images available showing different angles, sectional positions and accessory details.


Technical specifications
  • Model: YK-M306
  • Dimensions (L × W × H): 2120 × 970 × 430–720 mm
  • Backrest angle: 0–75° (±5°)
  • Knee-rest angle: 0–35° (±5°)
  • Height range (HI-LOW): 450–740 mm
  • Frame material: cold-rolled steel plate; surface treatment: electro-coating & powder-coating
  • Sleeping platforms: 4 pieces
  • Head/foot boards: detachable PP, blue, with patient record holder
  • Side rails: detachable aluminum, 6 tubes
  • Crank system: manual, low-noise
  • Castors: 4 lockable castors, Ø 125 mm
  • Rated load: 180 kg (operational); max static load: 270 kg
  • Standard accessories: stainless steel height-adjustable IV pole; 4 urine bag hooks; 4 IV holes
