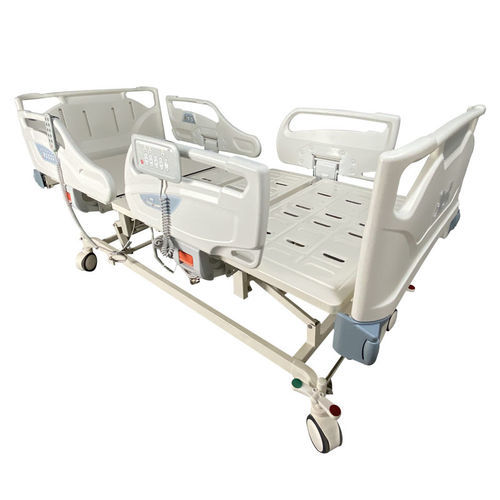

Hospital bed YK-E508electricheight-adjustableTrendelenburg
Add to favorites
Compare this product
Characteristics
- Applications
- hospital
- Operation
- electric
- Features
- height-adjustable, Trendelenburg, reverse Trendelenburg
- Component
- with locking wheels, on casters
- Number of sections
- 4-section
- Height
Max.: 740 mm
(29.13 in)Min.: 450 mm
(17.72 in)- Width
103 cm
(40.6 in)- Length
212 cm
(83.5 in)- Weight capacity
250 kg
(551.2 lb)
Description
Size & Function:
Features:
Standard Accessories:
Optional Accessories:
Technical specifications:
- External dimensions: 2120 × 1030 × 450-740 mm (L×W×H)
- Height (HI-LOW): 450-740 mm
- Back section: 0-80° (±5°)
- Knee section: 0-45° (±5°)
- Trendelenburg: 0-12°
- Reverse Trendelenburg: 0-12°
Features:
- Frame: cold-rolled steel plate, treated by electro-coating and powder-coating
- 4 sleeping platforms
- Detachable ABS headboard and footboard (wood color option)
- 4 detachable PP long side rails, blue color, with degree display
- Quiet, robust electric actuators for reliable operation
- 4 central lockable castors (one at each corner), diameter 125 mm
- Motor configuration: 4 motors, 1 handset, 1 control box (motor brands: Timotion standard; Linak or Jiecang available)
- Load capacity: 250 kg
- Included accessories: 1 stainless-steel height-adjustable IV pole; 4 urine bag hooks; 4 IV holes
Standard Accessories:
- PP guardrails: 2 pcs
- 125 mm wheels: 4 pcs
- Stainless-steel IV pole: 1 pc
- ABS head and foot board: 1 pair
- Drainage hooks: 2 pcs
- Timotion motors: 4 pcs (standard)
Optional Accessories:
- Foam mattress: 70-120 mm (PU, PVC or Nylon)
- Motor brand options: Linak or Jiecang
- Backup battery
- Color options: blue or wood
- Independent brake castors (optional)
- CPR: manual CPR or electric CPR (optional)
Technical specifications:
- External dimension: 2120 × 1030 × 450-740 mm
- Backrest angle: up to 80°
- Foot/knee rest angle: up to 45°
- Height adjustment: 450-740 mm
- Trendelenburg / Reverse Trendelenburg: 0-12°
- Load capacity: 250 kg
- Motors: 4 electric motors (Timotion standard; Linak/Jiecang optional)
- Control: 1 handset, 1 control box
- Castors: 4 central lockable castors, Ø 125 mm
- Frame: cold-rolled steel plate with electro-coating and powder-coating
- Head & foot boards: detachable ABS (wood color option)
- Side rails: detachable PP longer side boards with degree display
- Standard accessories: SS height-adjustable IV pole, urine bag hooks, IV holes, drainage hooks
