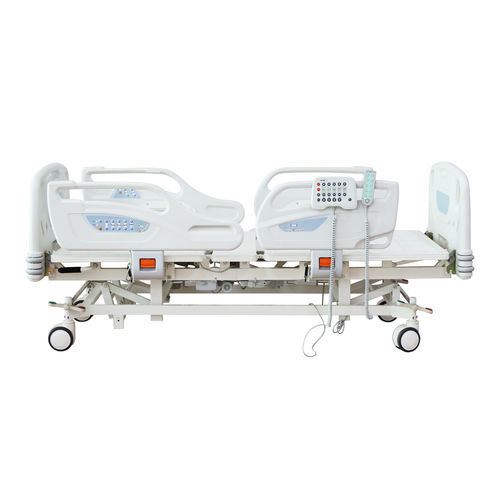

Intensive care bed YK-E503

electricheight-adjustabletilting

Overview
Electric five-function ICU bed designed for intensive care units. Back and leg plates are linked; electric adjustment enables supine, sitting and upward/downward tilt positions.

Key features

• Name: Electric five-function ICU bed
• Frame: cold-rolled steel plate, treated by electro-coating and powder-coating
• 4 sleep platforms with manual CPR access on two sides
• Detachable ABS head and foot boards, blue, with bumpers
• 4 detachable PP side rails, blue cover, with angle indicator, side‑rail patient button and degree display
• Quiet, robust electric linear actuators (4 motors)
• 4 central lockable castors, Ø125 mm
• Motor: Germany brand motors (4); includes 1 handset, 1 battery, 1 control box and 1 nurse remote
• Battery display on nurse remote
• Height display with color indication: lowest height green, other positions orange, normal white
• Load capacity: 250 kg
• Accessories included: 1 stainless steel height-adjustable I.V. pole; 4 urine bag hooks; 4 I.V. holes

Dimensions
Overall size: 2210×1050×440-760 mm (L×W×H)
External dimension (listed in parameters): 2120×1030×450-740 mm

Functions

• HI-LOW: 440-760 mm (also shown as 450-740 mm in parameters)
• Back section: 0–80° (±5°)
• Knee section: 0–40° (±5°)
• Trendelenburg: 0–12°
• Reverse Trendelenburg: 0–12°

Product parameters

• External dimension: 2120×1030×450-740 mm
• Backrest angle: up to 80°
• Footrest angle: up to 45°
• Height adjustment: 450-740 mm
• Trendelenburg / Reverse Trendelenburg: 0–12°

Standard accessories

• Guardrail with controller: 2 pcs
• Central lock castor: 4 pcs
• S.S. I.V. pole (height-adjustable): 1 pc
• ABS head and foot board: 1 pair
• Drainage hook: 2 pcs
• Linear motor: 4 pcs
• Battery: 1 pc
• Nurse controller: 1 pc
• Remote handset: 1 pc

Technical specifications

• Model: YK-E503
• External dimensions (reported): 2120×1030×450-740 mm and 2210×1050×440-760 mm
• Height adjustment / HI-LOW: 440-760 mm (also shown as 450-740 mm)
• Backrest angle: up to 80°
• Footrest / knee section: up to 45° / 0–40° (±5°)
• Trendelenburg / Reverse Trendelenburg: 0–12°
• Frame material: cold-rolled steel plate with electro-coating & powder-coating
• Panels: ABS head/foot boards, PP side rails
• Motors: 4 linear motors (Germany brand)
• Controls & power: 1 handset, 1 nurse remote with battery display, 1 control box, 1 battery
• Castors: 4 central lockable castors, Ø125 mm
• Load capacity: 250 kg
• Included accessories: SS IV pole (height-adjustable), urine bag hooks, I.V. holes, drainage hooks
