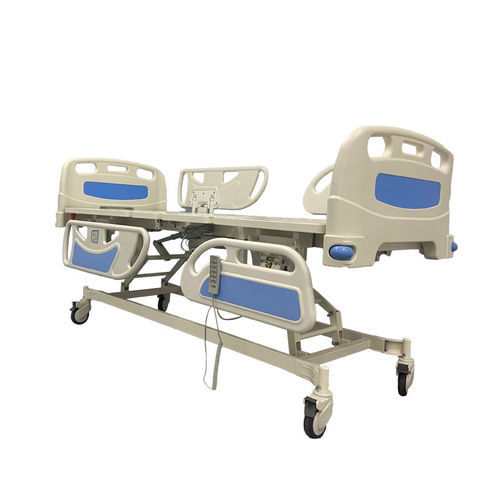

Intensive care bed YK-E508

hospitalelectricheight-adjustable

Overview
The YK-E508 five-function electric hospital bed is designed for ICU and acute care environments. It provides multi-section adjustment, electric actuators for reliable positioning and dedicated CPR functions suitable for clinical use.

Size & Function

• External size: 2120 × 1030 × 450–740 mm (L × W × H)
• Height adjustment (HI-LOW): 450–740 mm
• Backrest: 0–80° (±5°); specification table lists 70°
• Knee/foot section: 0–40° (±5°); specification table lists 45°
• Trendelenburg / Reverse Trendelenburg: 0–12° each

Construction & Materials

• Frame: cold-rolled steel plate with electrophoretic coating and powder-coating for corrosion resistance
• Sleeping surface composed of 4 panels
• Detachable ABS head and foot boards with wood-color finish and integrated bumpers
• Four detachable long side rails in PP with wood-color cover, angle indicator and degree display
• Four central lockable castors at corners, Ø125 mm

Drive & Controls

• Quiet electric actuators provide smooth positioning for all functions
• Motor configurations referenced on product: Linak system (4 motors; 1 handset; 1 control box; nurse remote) and specification table also lists Timotion system (motor 3 pcs; remote 1 pc; control box 1 pc)
• CPR: manual CPR for back board and electric CPR for all functions (as stated in product text)

Accessories & Additional Features

• Safe working load (SWL): 250 kg
• Included accessories in product text: 1 stainless-steel height-adjustable I.V. pole; 4 urine bag hooks; 4 I.V. holes
• Additional accessories listed in specification table: aluminum siderails (2 pcs); drainage hooks (2 pcs)

Standard Accessories (from product table)
Aluminum siderails: 2 pcs
125 mm wheels: 4 pcs
S.S I.V. Pole: 1 pc
ABS head and foot board: 1 pair
Drainage Hook: 2 pcs
Timotion motor system: 1 set (motor 3 pc; remote 1 pc; control box 1 pc)

Technical parameters (table)
External dimension: 2120 × 1030 × 450–740 mm
Backrest angle: 70°
Footrest angle: 45°
Height adjustment: 450–740 mm
SWL - Safe working load: 250 kgs

Characteristics / Specifications

• Model: YK-E508
• Dimensions (L×W×H): 2120 × 1030 × 450–740 mm
• Height adjustment range: 450–740 mm
• Backrest angle: up to 70° (product text also indicates 0–80° ±5°)
• Foot/knee section angle: up to 45° (product text also indicates 0–40° ±5°)
• Trendelenburg / Reverse Trendelenburg: 0–12°
• Frame material: cold-rolled steel plate with electrophoretic and powder coating
• Head & foot boards: detachable ABS, wood-color finish, with bumpers
• Side rails: 4 detachable PP long rails with wood-color cover and angle indicator
• Castors: 4 central lockable castors, Ø125 mm
• Motor / actuator: electric actuators; product references Linak (4 motors) and also lists Timotion system
• CPR: manual CPR for back board; electric CPR for all functions
• SWL: 250 kg
• Included accessories: SS height-adjustable I.V. pole (1 pc); urine bag hooks (4 pcs); I.V. holes (4 pcs); drainage hooks (2 pcs)
