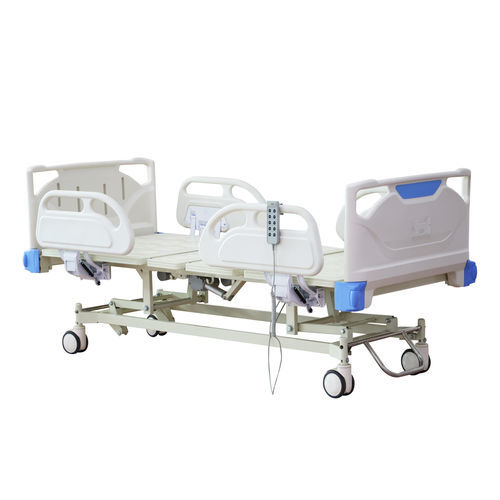

Intensive care bed YK-E501

hospitalelectricheight-adjustable

Overview
Electric five-function ICU bed designed for intensive care units. Frame made of cold-rolled steel plate with electro-coating and powder-coating finish. Four-section mattress platform. Detachable ABS head and foot boards with blue cover and patient record holder. Detachable PP side rails with blue cover and angle indicator (no side-wall control buttons). Quiet electric actuators and TIMOTION 4-motor drive system with 1 handset and 1 control box. Four central lockable castors (Ø125 mm). Rated load: 250 kg. Supplied accessories include 1 stainless-steel height-adjustable I.V. pole, 4 urine bag hooks and 4 I.V. ports.

Size & Function
External dimension: 2120×1030×450–740 mm (L×W×H)
Height adjustment (HI-LOW): 450–740 mm
Backrest angle: 0–80° (±5°) / up to 80°
Knee section: 0–40° (±5°)
Footrest angle: 45°
Trendelenburg: 0–12°
Reverse Trendelenburg: 0–12°
Frame: Cold-rolled steel plate with electro-coating & powder-coating

Standard Accessories

• PP side rails: 2 pcs
• 125 mm castors: 4 pcs
• Stainless-steel height-adjustable I.V. pole: 1 pc
• ABS head and foot board: 1 pair
• Drainage hooks: 2 pcs
• TIMOTION motors: 4 pcs

Optional Accessories
Foam mattress: 70–120 mm (PU, PVC or nylon)
Motor brand (optional): LINAK, JIECANG
Backup battery: optional backup battery
Color: blue or wood finish
Castors: independent brake castor option
CPR: manual CPR or electric CPR option

Technical Specifications

• Model: YK-E501
• External dimension: 2120×1030×450–740 mm
• Backrest angle: 0–80° (±5°)
• Footrest/knee section: footrest 45°; knee section 0–40° (±5°)
• Height adjustment: 450–740 mm (HI-LOW)
• Trendelenburg / Reverse Trendelenburg: 0–12°
• Rated load: 250 kg
• Motor system: TIMOTION (4 motors) with 1 handset and 1 control box
• Castors: 4 central lockable castors, Ø125 mm
• Frame: cold-rolled steel plate with electro-coating & powder-coating finish
• Included accessories: stainless-steel height-adjustable I.V. pole, urine bag hooks, I.V. ports
