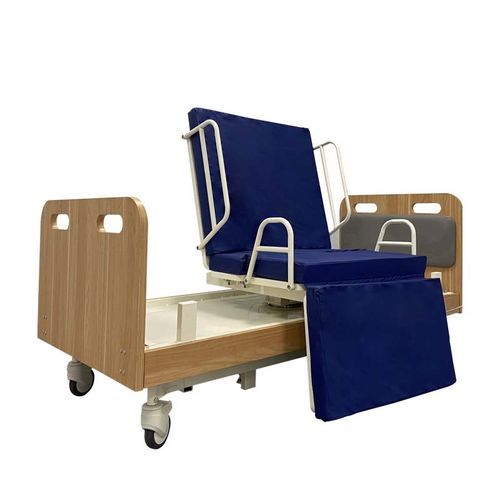

Hospital bed YK-E511

medicalintensive careelectric

Product overview
Electric five-function hospital bed designed for ICU and clinical care. Ergonomic segmented back and leg plates allow adjustment of sleeping, sitting, Trendelenburg and reverse Trendelenburg positions, and height adjustment to facilitate patient transfer and clinical procedures.

Key features

• Five electric functions: backrest, knee section, Hi‑Lo, Trendelenburg and Reverse Trendelenburg
• Steel frame with MDF head and foot boards for easy cleaning and stable support
• Motor options: Linak / JieCang / Taiwan motor; system includes back motor, leg motor, Hi‑Lo motor, control box and wired remote
• Safe working load: 240 kg (manufacturer notes motor system supports >180 kg)
• Mobility: 5" lockable deluxe castors with individual lock system
• Mattress included (density 26) with fabric cover; I.V. pole, urine hooks and I.V. drip holes provided
• Approvals: ISO 13485 and CE; Warranty: one year after shipment

Technical parameters

• Model: YK-E511 (Item No.: YK-Eh501)
• Outside size: 2120 × 980 × 490–760 mm (L × W × H)
• Alternative documented size reference: 2050 × 980 × 490–760 mm
• Mattress base inside size: 1950 × 840 mm
• Height adjustable range: 490–760 mm
• Backrest angle: 0–75° (±5°); Knee section angle: 0–40° (±5°)
• Trendelenburg / Reverse Trendelenburg: 0–12°
• Materials: steel frame and MDF head/foot boards
• Castors: 5" individual lock system

Standard accessories

• Head & foot board: 1 set
• Wheels / castors: 4 pcs
• Motors: 4 pcs
• Remote control: 1 pc
• Urine hooks: 4 pcs; I.V. drip holes: 4 pcs; I.V. pole: 1 pc
• Mattress (density 26) with fabric cover

Options
Optional accessories available on request: dining table, bedside cabinet, alternative mattress types. Contact supplier for customization, lead time and shipping details.

Detail / Images
Multiple product views are provided (main product image plus side/detail images).
