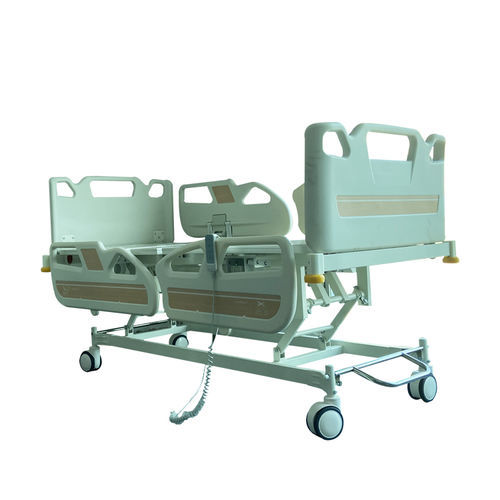

Nursing home bed YK-E302
medicalhospitalelectric

Nursing home bed - YK-E302 - Topmost Medical Technology Co.,Ltd - medical / hospital / electric
Nursing home bed - YK-E302 - Topmost Medical Technology Co.,Ltd - medical / hospital / electric
Nursing home bed - YK-E302 - Topmost Medical Technology Co.,Ltd - medical / hospital / electric - image - 2
Nursing home bed - YK-E302 - Topmost Medical Technology Co.,Ltd - medical / hospital / electric - image - 3
Add to favorites
Compare this product
Go to the Topmost Medical Technology Co.,Ltd website for more information

Characteristics

Applications
nursing home, medical, hospital
Operation
electric
Features
height-adjustable, tilting
Component
on casters, with locking wheels
Number of sections
4-section
Height

Max.: 730 mm
(28.74 in)

Min.: 410 mm
(16.14 in)

Width

105 cm
(41.3 in)

Length

212 cm
(83.5 in)

Weight capacity

250 kg
(551.2 lb)

Description

Product overview
  • Electric three-function hospital bed, model YK-E302, designed for clinical and long-term care environments.
  • Frame: cold-rolled steel plate with electro-coating and powder-coating for corrosion protection.
  • 4 detachable sleeping platforms for segmented patient positioning.
  • Detachable ABS head and foot boards (standard blue); 4 detachable PP long side boards (wood color) with degree display.
  • Actuators: quiet electric actuators (Timotion / Linak referenced); remote handset and control box included. Backup battery available as an option.
  • Safe working load (SWL): 250 kg. 4 central-lock castors Ø125 mm (option for independent brake castors).
  • Accessories include stainless-steel height-adjustable I.V. pole, urine bag hooks and drainage hooks.


Dimensions & motion ranges
  • Size (product block): 2150 × 1030 × 450–740 mm (L × W × H).
  • External dimension (specification table): 2120 × 1050 × 410–730 mm.
  • HI‑LOW (product block): 495–785 mm; Height adjustment (spec table): 410–730 mm.
  • Back section / Backrest (product block): 0–80° (±5°); Backrest (spec table): 70°.
  • Knee / Footrest (product block): 0–40° (±5°); Footrest (spec table): 45°.


Key features & construction
  • Robust welded frame in cold-rolled steel with electro-coating and powder-coating for durable finish.
  • Four segmented sleeping platforms enable independent adjustment of back and leg sections for clinical positioning.
  • Detachable ABS head/foot boards and PP sideboards for easy cleaning and replacement; optional color choices (blue or wood).
  • Central-locking castors Ø125 mm for secure immobilization; independent brake castors available.
  • Motor options referenced: Timotion or Linak (Jiecang optional). Includes control box and wired remote; backup battery can ensure operation during power loss.
  • Accessory compatibility: foam mattresses (70–120 mm, PU/PVC/Nylon), guardrail size options and IV/drainage accessories.


Standard accessories
  • PP guardrail: 2 pcs
  • Central lock castors Ø125 mm: 4 pcs
  • Stainless-steel I.V. pole (height adjustable): 1 pc
  • ABS head and foot board: 1 pair
  • Drainage hooks: 2 pcs
  • Motors (synchronized reference): 4 pcs
  • Remote handset: 1 pc
  • Control box: 1 pc


Optional accessories
  • Foam mattress 70–120 mm (PU / PVC / Nylon)
  • Motor: Timotion, Linak or Jiecang
  • Backup battery
  • Guardrail sizes: 710 × 350 mm; 820 × 350 mm; 1080 × 350 mm
  • Color options: blue or wood
  • Independent brake castors


Technical specifications
  • Model: YK-E302
  • External dimension: 2120 × 1050 × 410–730 mm
  • Alternate size listing: 2150 × 1030 × 450–740 mm
  • Backrest angle (table): 70°; Back section (product block): 0–80° (±5°)
  • Footrest angle (table): 45°; Knee section (product block): 0–40° (±5°)
  • Height adjustment (table): 410–730 mm; HI‑LOW (product block): 495–785 mm
  • Safe working load (SWL): 250 kg
  • Frame material: cold-rolled steel plate, electro-coating & powder-coating
  • Sleeping platforms: 4 segments
  • Head & foot boards: detachable ABS (standard blue)
  • Side boards: 4 detachable PP panels (wood color) with degree display
  • Castors: 4 central-lock castors Ø125 mm (option for independent brake castors)
  • Motor options: Timotion, Linak (Jiecang optional); control box and remote handset included
  • Standard accessories: PP guardrail (2 pcs), SS I.V. pole (1 pc), drainage hooks (2 pcs), urine bag hooks
