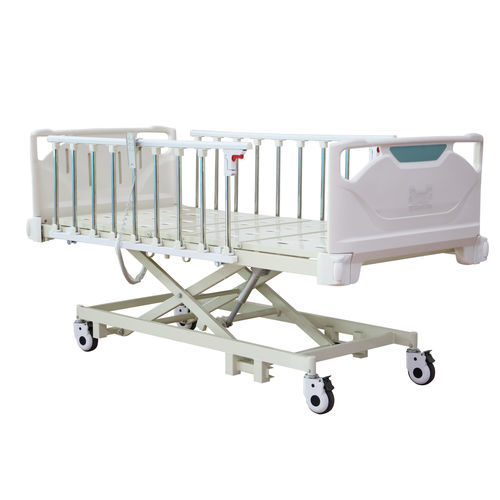

Hospital bed YK-E306

electricheight-adjustablewith locking wheels

Features:
This electric three-function hospital bed is designed for patient care and transfer. Headboard and footboard are detachable to facilitate patient handling. Side rails are polypropylene-covered with an international-standard gap. All positions are electrically adjusted via a wired handset. Four castors with central locking enable convenient repositioning.

Size:
Outside size: 1980–2120 * 970 * 300–680 mm (L*W*H)

Functions:

• Height (Hi‑Low): 300–740 mm (depending on configuration)
• Back section: 0–75/80° (±5°)
• Knee section: 0–40/45° (±5°)
• Frame: cold‑rolled steel plate with electro‑coating and powder‑coating
• 4-piece sleeping platform
• Detachable ABS headboard and footboard with patient record holder
• Detachable aluminum side rails with automatic lock (6 aluminum tubes)
• Quiet electric actuators for reliable adjustment
• 4 central‑lock castors, Ø 125 mm (5")
• Motor brands: Timotion / Jiecang (3 motors, 1 handset, 1 control box)
• Safe working load: up to 250–270 kg depending on configuration
• Accessories: height‑adjustable SS I.V. pole; urine bag hooks; I.V. drip holes

Specifications:
Name: Electric three‑function hospital bed
Item No.: YK-E306
Outside size: 1980 * 970 * 300–680 mm (varied values on page: 1980–2120 L)
Mattress base inside size: L1950 * W840 mm
Warranty: 1 year after shipment
Head/foot board: Detachable ABS
Side rail: Detachable aluminum side rails (automatic lock)
Motor brand: Timotion / Jiecang
Motor system: 3 motors (back, leg, Hi‑Lo); 1 handset; 1 control box; single plug
Castors: 4 central lockable castors, Ø 125 mm (5")
Urine hooks: chrome steel with plastic dipping
Approvals: ISO13485; CE
Materials: Steel frame and ABS panels
Options: dining table; mattress; bedside cabinet
Safe working load: up to 250–270 kg depending on configuration

Functions (detailed):

• Back‑rest lifting: 0–75° (±2%) controlled by handset
• Knee‑rest lifting: 0–45° (±2%) controlled by handset
• Height adjustment: 300–680/740 mm controlled by handset

Standard Accessories:

• Head & foot board: 1 set
• Guardrails: 2 pcs
• Wheels: 4 pcs
• Motors: 3 pcs
• Handset: 1 pc
• Urine hooks: 4 pcs
• I.V. drip holes: 4 pcs
• I.V. pole: 1 pc (stainless steel, height adjustable)

Technical specifications:

• Model: YK-E306
• Product type: Electric three‑function hospital/nursing bed
• Overall dimensions (L*W*H): 1980–2120 * 970 * 300–680 mm
• Mattress base inside size: L1950 * W840 mm
• Height range: 300–740 mm
• Backrest angle: up to 75–80°
• Knee section angle: up to 40–45°
• Frame: cold‑rolled steel, electro‑coating & powder‑coating
• Head/foot boards: detachable ABS
• Side rails: detachable aluminum with automatic lock
• Motors: 3 electric motors (back, leg, Hi‑Lo); brands Timotion / Jiecang
• Castors: 4 lockable castors, Ø 125 mm
• Safe working load: up to 250–270 kg
• Approvals: ISO13485; CE
• Warranty: 1 year after shipment
