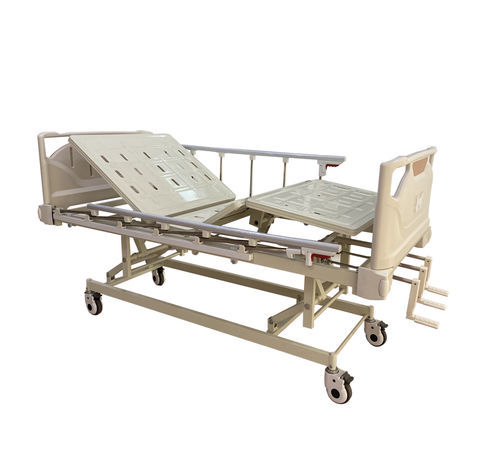

Hospital bed YK-M302
medicalnursing homemanual

Hospital bed - YK-M302 - Topmost Medical Technology Co.,Ltd - medical / nursing home / manual
Hospital bed - YK-M302 - Topmost Medical Technology Co.,Ltd - medical / nursing home / manual
Add to favorites
Compare this product
Go to the Topmost Medical Technology Co.,Ltd website for more information

Characteristics

Applications
hospital, medical, nursing home
Operation
manual
Features
height-adjustable
Component
on casters, with locking wheels
Number of sections
3-section
Height

Max.: 740 mm
(29.13 in)

Min.: 450 mm
(17.72 in)

Width

97 cm
(38.2 in)

Length

212 cm
(83.5 in)

Weight capacity

240 kg
(529.1 lb)

Description

Product overview
  • Three-function manual hospital bed for backrest, knee section and height adjustment via a manual crank system, suitable for hospitals, clinics and long-term care facilities.
  • Designed for straightforward operation, maintenance and integration with standard clinical accessories.


Technical parameters
  • Size: L2120×W970×H450-740 mm
  • Height adjustment (Hi-Low): 450–740 mm
  • Back section angle: 0–75° (±5°)
  • Knee section angle: 0–40° (±5°)
  • Safe Working Load (SWL): 240 kg


Technical configuration
  • Detachable PP head and foot boards, blue cover
  • 2 detachable aluminum side rails with aluminum tube
  • Quiet and light manual crank system for reliable adjustments
  • 4 individual lockable castors at each corner, diameter 125 mm
  • Accessories included: 1 stainless-steel height-adjustable I.V. pole; 4 urine bag hooks; 4 I.V. holes


Images
  • Main product image shown in the product image carousel.
  • Additional detail images (panels, parts, installation) available in the Detail tab.


Specifications
  • Model: YK-M302
  • Type: Manual three-function hospital bed
  • Head/foot boards: Detachable PP, blue cover
  • Side rails: 2 detachable aluminum rails with aluminum tube
  • Operation: Manual crank system (quiet and light)
  • Castors: 4 individual lockable castors, Ø 125 mm
  • Accessories: SS height-adjustable I.V. pole; 4 urine bag hooks; 4 I.V. holes
  • Dimensions and ranges: L2120×W970×H450-740 mm; Back 0–75° (±5°); Knee 0–40° (±5°)
  • Safe Working Load (SWL): 240 kg
