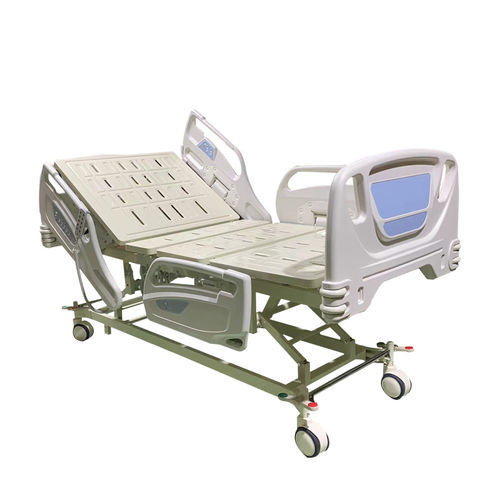

Hospital bed YK-E506

intensive careelectricheight-adjustable

Overview
Deluxe five-function electric hospital bed designed for ICU and ward use, providing adjustable patient positioning and reliable electric operation.

Size & Function

• Overall dimensions (L×W×H): 2210 × 1050 × 440–760 mm
• Height adjustment (HI-LOW): 440–760 mm
• Back section: 0–80° (±5°)
• Knee section: 0–40° (±5°)

Frame & Construction

• Frame: cold-rolled steel plate with electro-coating and powder-coating
• Sleeping platforms: 4 sections
• Detachable ABS head and foot boards, wooden color
• 4 detachable PP long side rails, blue color, with degree display

Movement & Control

• Quiet, robust electric actuators for reliable operation
• Motor brand: Linak; configuration: 4 motors, 1 handset, 1 control box

Castors & Capacity

• 4 central lockable castors at corners, diameter 125 mm
• Maximum load capacity: 250 kg

Accessories

• 1 stainless steel height-adjustable IV pole
• 4 urine bag hooks
• 4 IV infusion holes

Technical specifications

• Model: YK-E506
• Product name: Deluxe Five-Function Electric Bed
• Materials and components as listed above

Visual and additional content
Product images and detailed views are available in the technical data sheet and product gallery.
