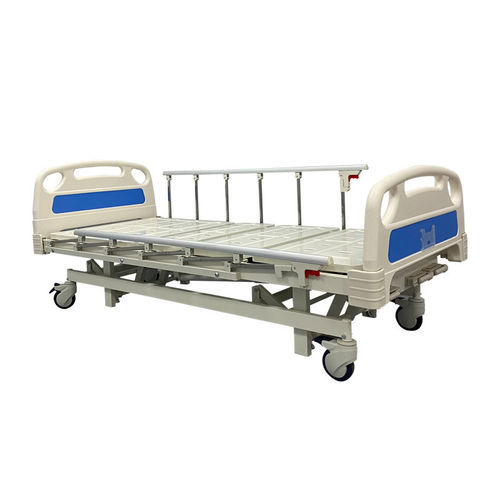

Hospital bed YK-M305

manualheight-adjustableon casters

Size & Function
Size: 2120 × 970 × 430-720 mm (L × W × H)
Function: Back section: 0-75° (±5°); Knee section: 0-35° (±5°)
HI-LOW (height adjustment): 450-740 mm (see technical table for alternate value)

Features

• Frame: cold-rolled steel plate with electro-coating and powder-coating finish
• 4-piece sleeping platform
• Detachable PP head and foot boards, blue cover, with patient record holder
• 2 detachable aluminum side rails with 6 aluminum tubes for upper and lower protection
• Quiet, light manual crank system for adjustment
• 4 central lockable castors (125 mm / 5")
• Bearing capacity: textual values indicate 180 kg (working) and 270 kg (not working)
• Accessories included: 1 stainless-steel height-adjustable IV pole; 4 urine bag hooks; 4 IV holes

Additional technical details (from product table)
Technical parameters:
External dimension: 2120 × 970 × 430-720 mm
Backrest angle (table): 70°
Footrest angle (table): 45°
Height adjustment (table): 350-680 mm
SWL (Safe working load) in table: 250 kg

Technical specifications

• Model: YK-M305
• Overall dimensions (L × W × H): 2120 × 970 × 430-720 mm
• Back section angle: up to 70° (table) / 0-75° (±5°) as indicated in descriptive text
• Knee section angle: up to 35° (±5°)
• Footrest angle: 45°
• Height adjustment / HI-LOW: 450-740 mm (description) — 350-680 mm (table)
• Frame material & finish: cold-rolled steel plate with electro-coating and powder-coating
• Sleeping platforms: 4 pieces
• Head & foot boards: detachable PP, blue cover, with patient record holder
• Side rails: 2 detachable aluminum side rails with 6 aluminum tubes
• Operation: manual quiet and light crank system
• Castors: 4 central lockable castors, diameter 125 mm (5")
• Load capacities: SWL 250 kg (table); description text indicates 180 kg (working) and 270 kg (not working)
• Included accessories: 1 stainless-steel height-adjustable IV pole; 4 urine bag hooks; 4 IV holes
